Cava
Modern colors meets industrial design with an edge of softness that makes this tile flexible in its application. The high quality porcelain coupled a high-tech finish allow these tiles to be installed both outdoors and in wet areas.

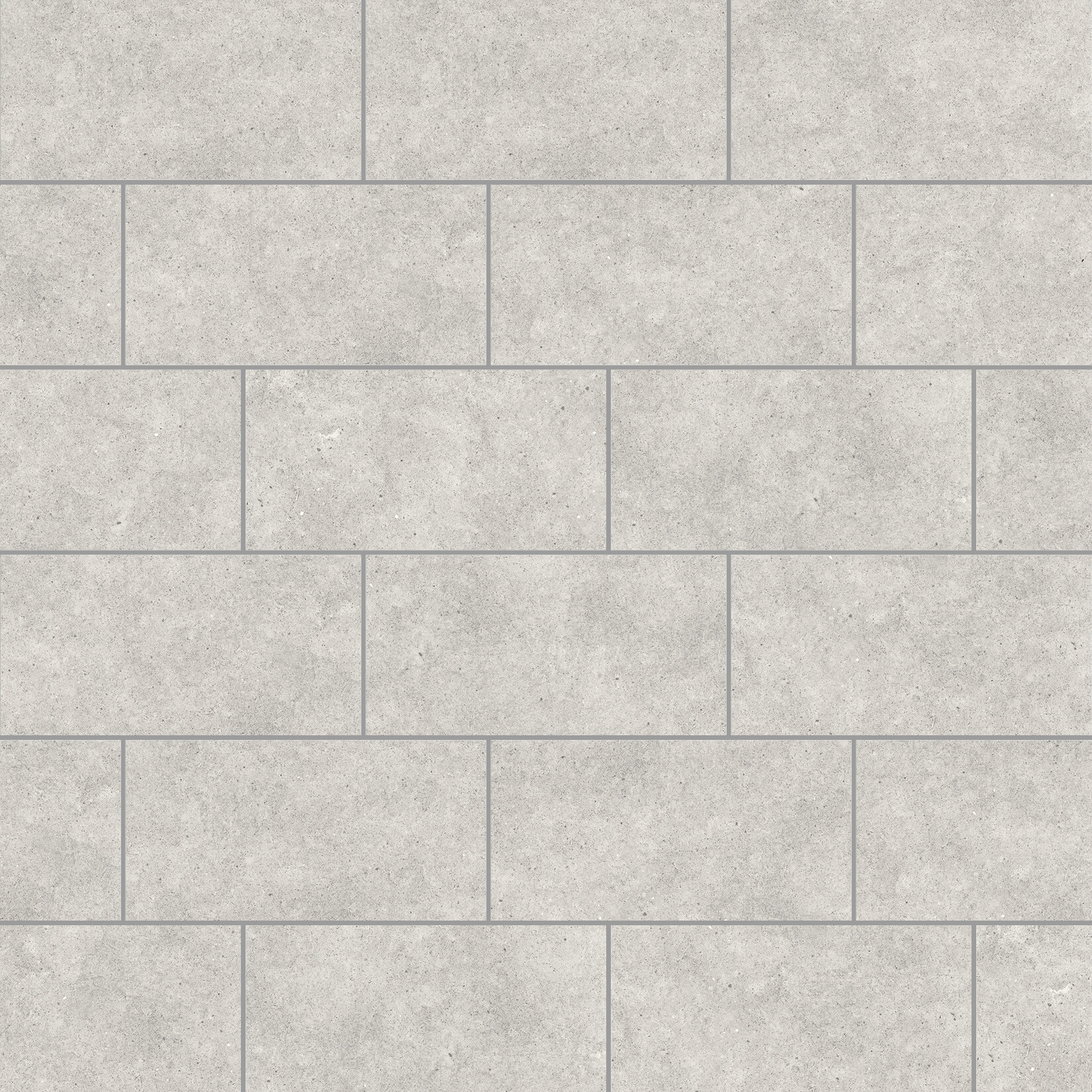

Variations

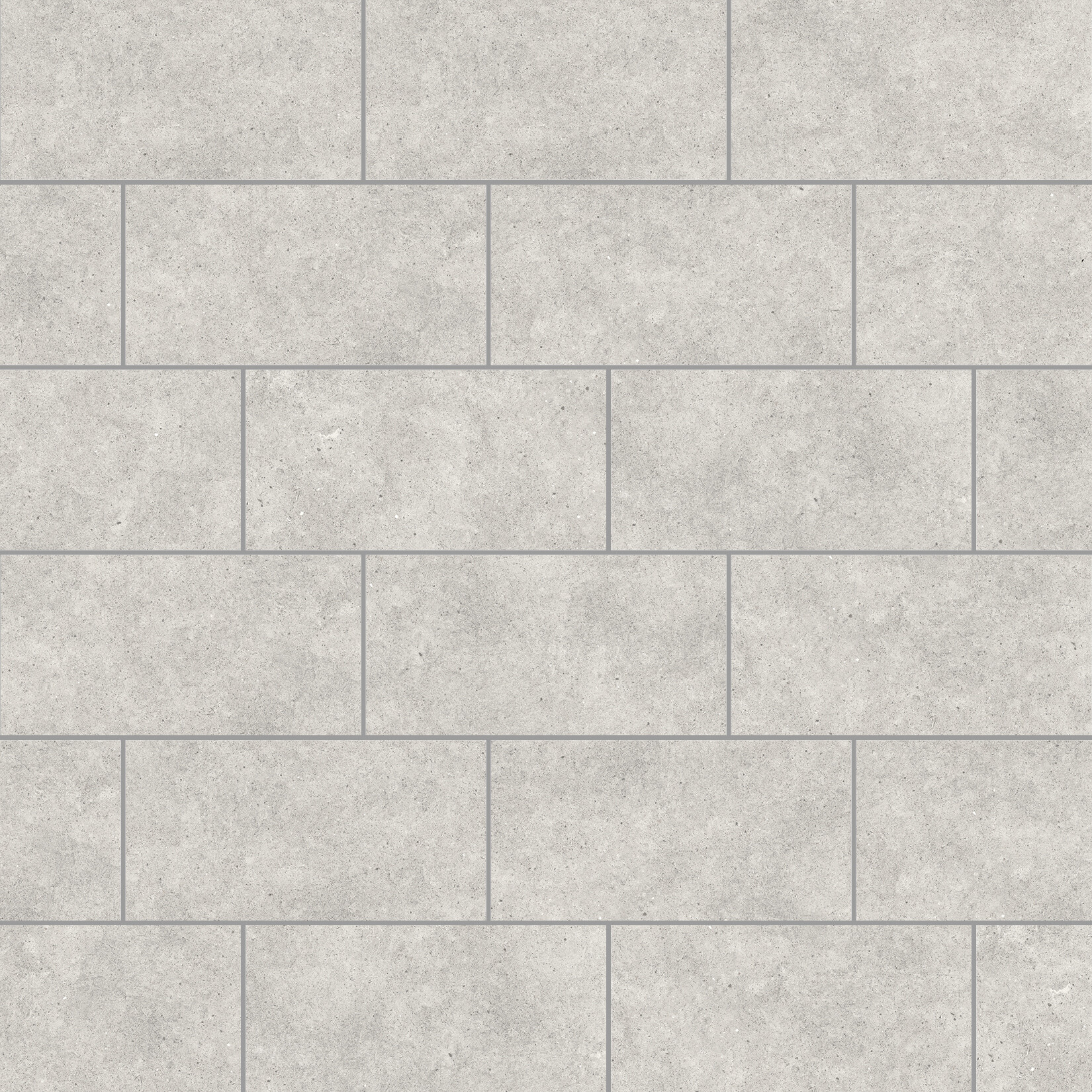

Clay

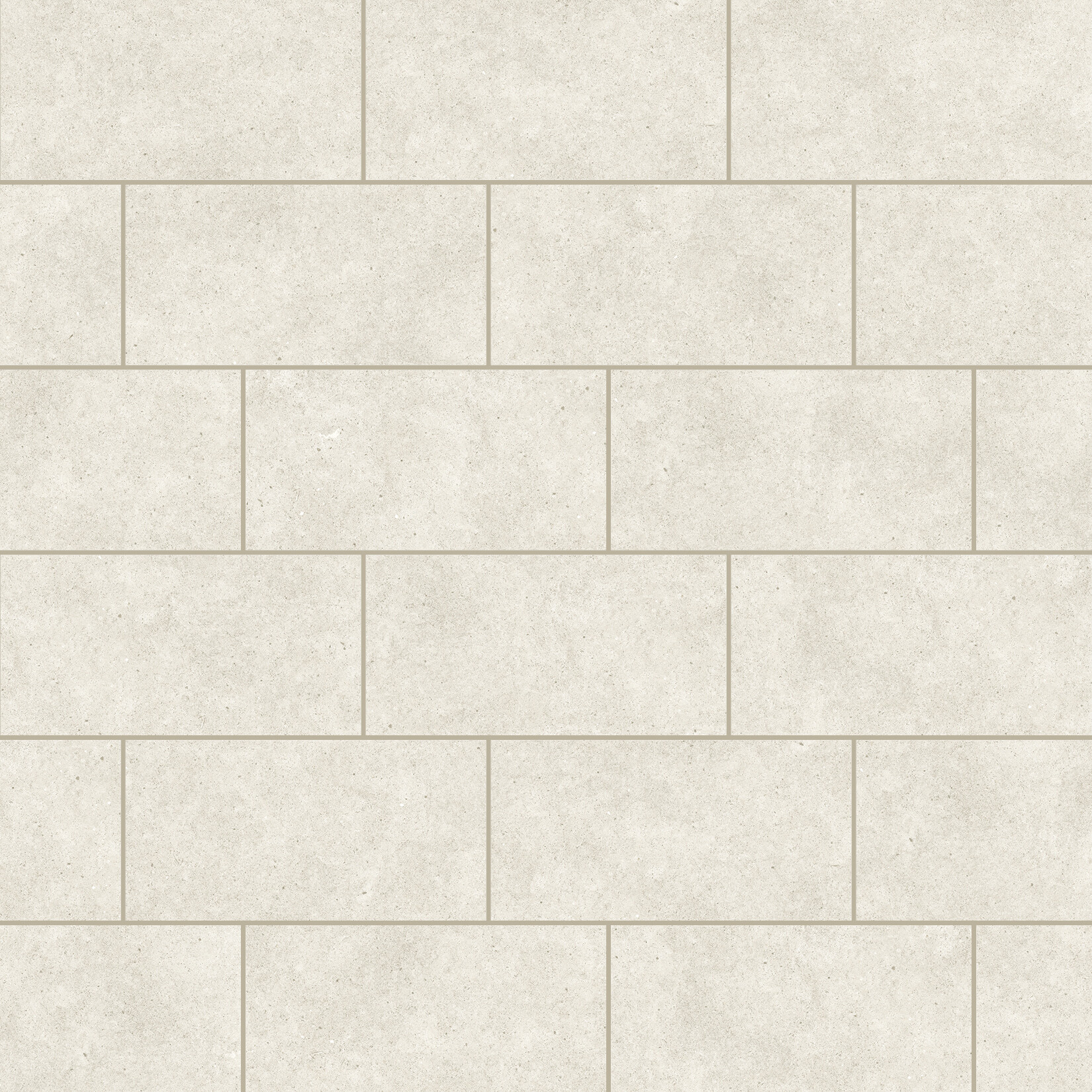

Earth

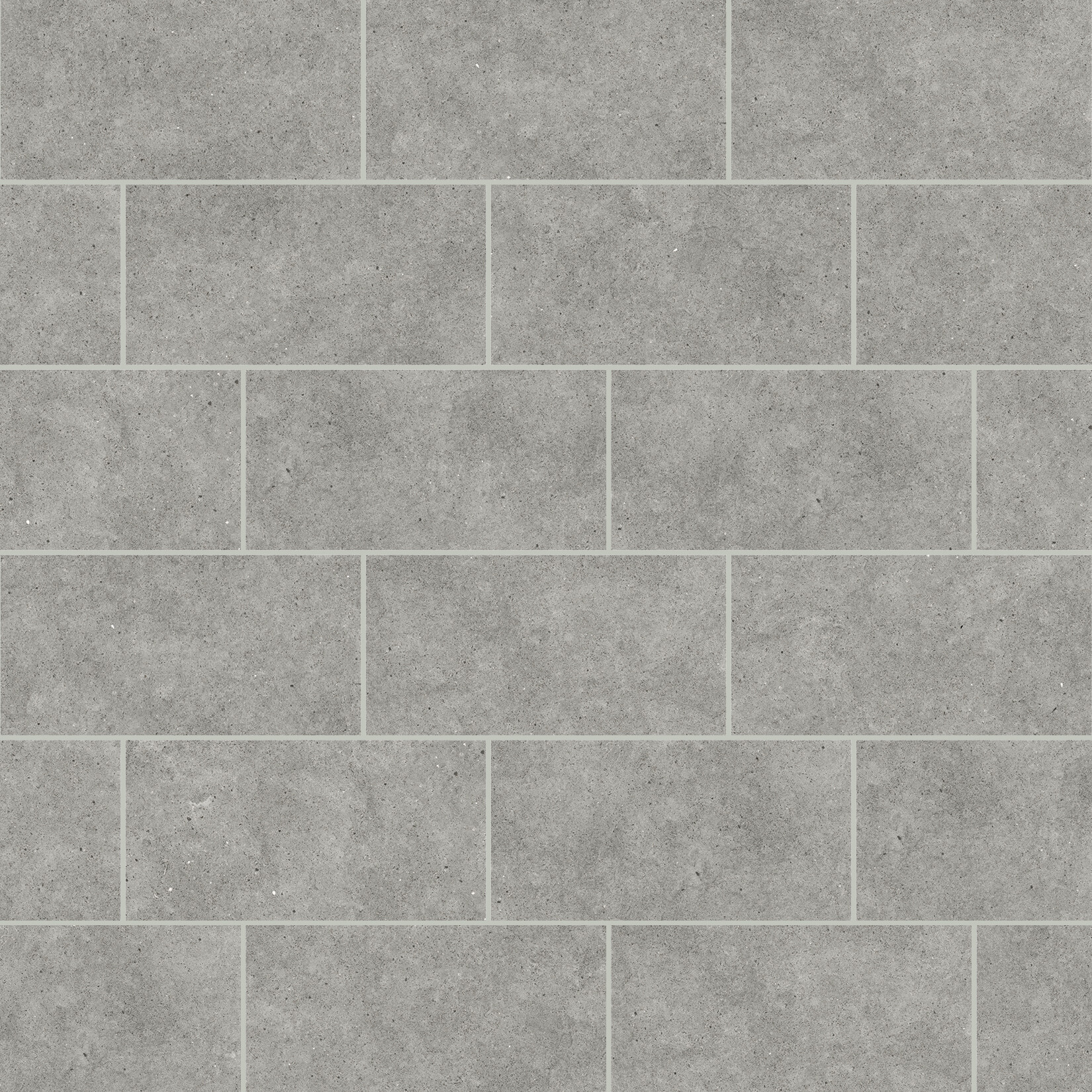

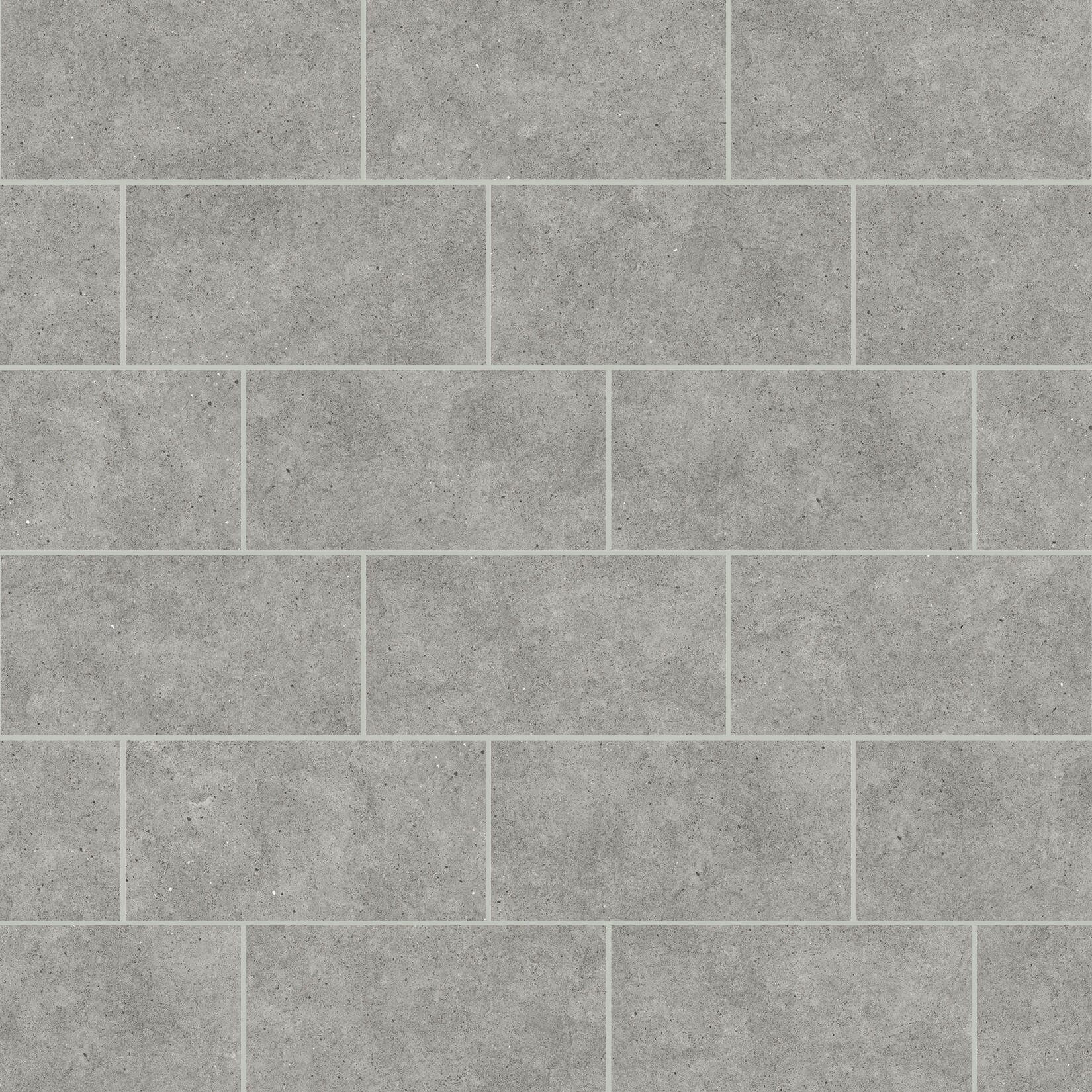

Mica

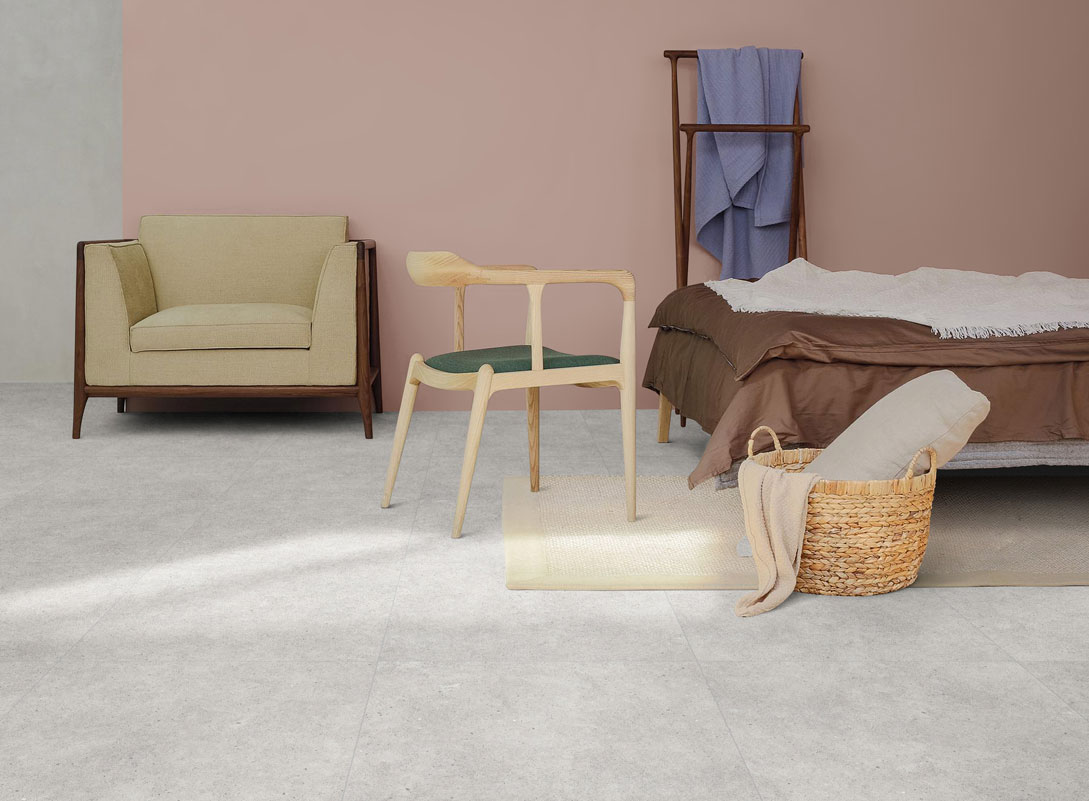

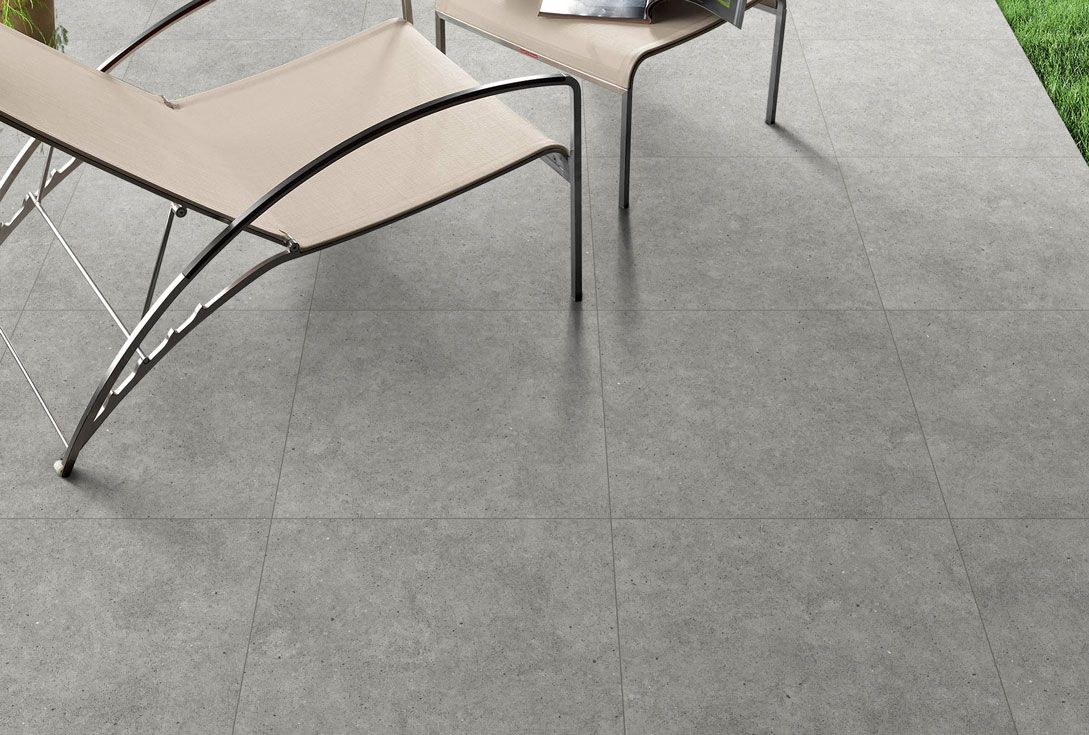

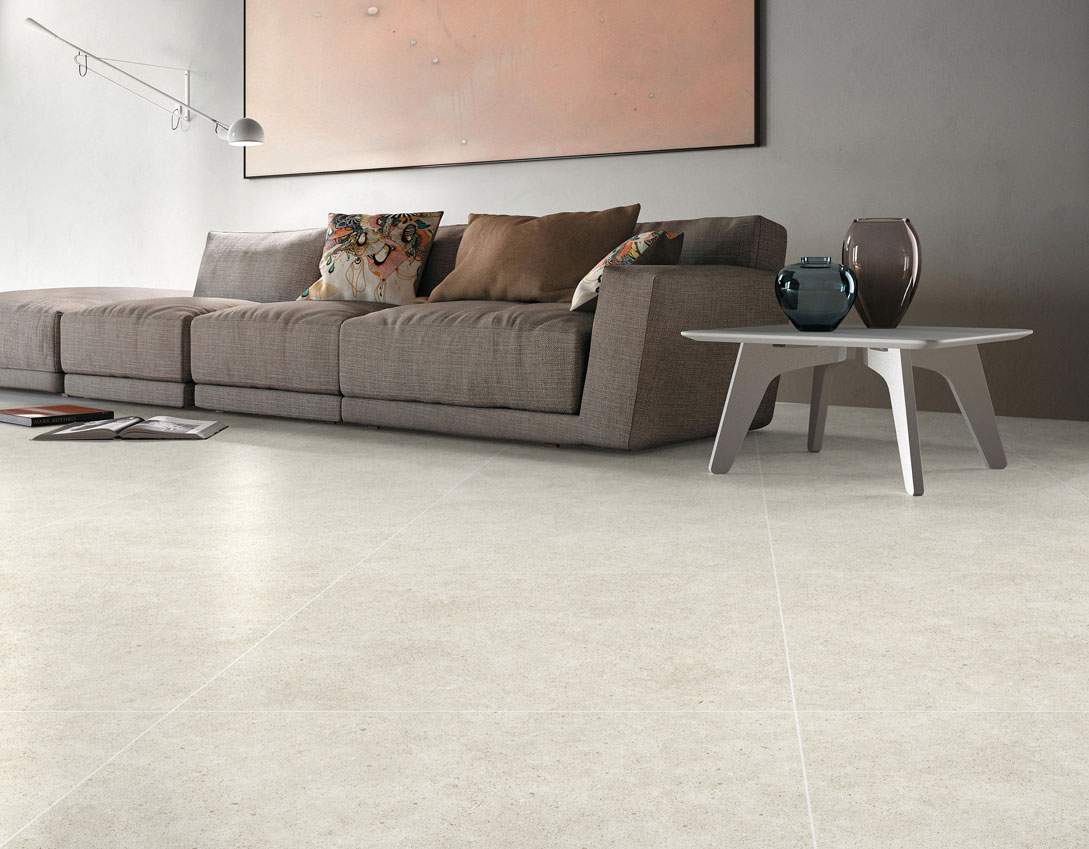

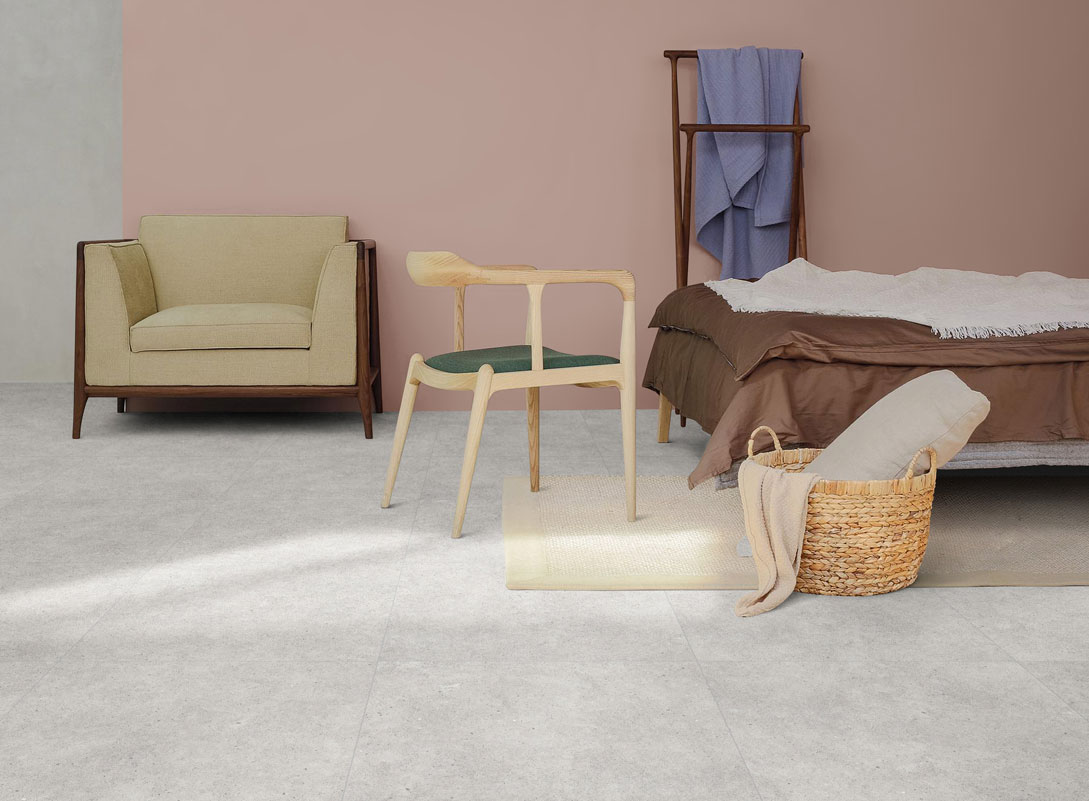

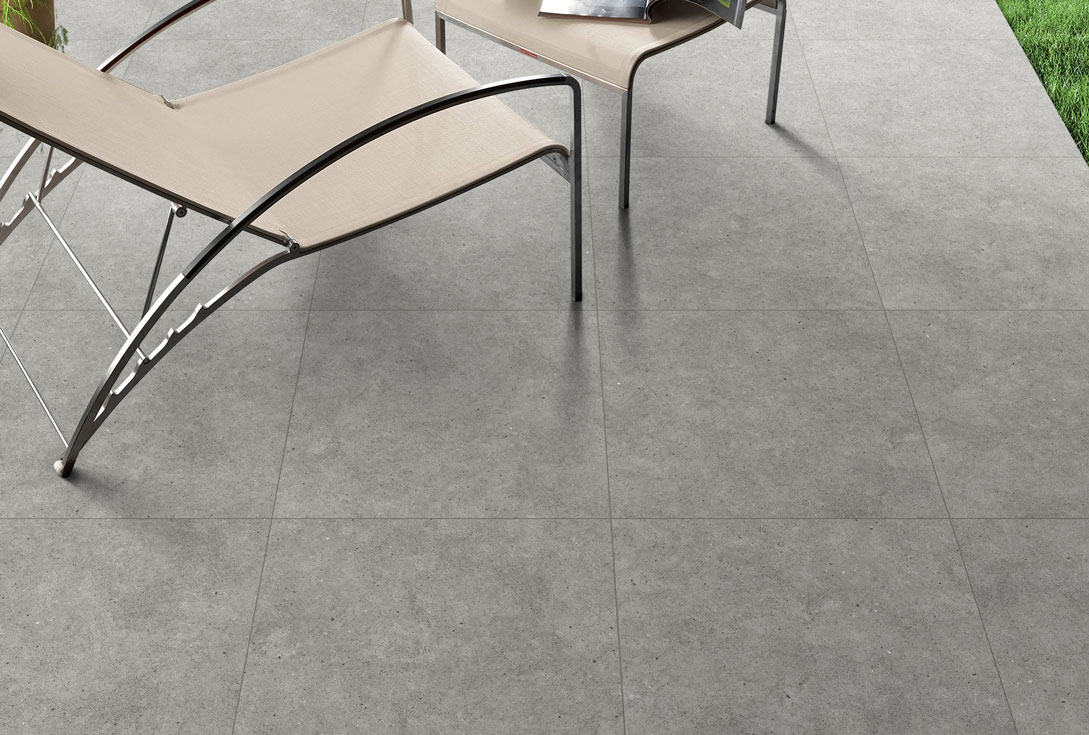

Installation Photos
|
|
|
|
General Specifications
| Description | Dethod | Unit | 24 x 24 | 12 x 24 | 2 x 2 | 2″ Hexagon |
|---|---|---|---|---|---|---|
| Actual Size | ISO 10545-2 | mm – in | 600 x 600 mm – 23.6 x 23.6 in | 299 x 600 mm – 11.8 x 23.6 in | 299 x 299 mm – 11.7 x 11.7 in | 303 x 303 mm – 11.9 x 11.9 in |
| Thickness | ISO 10545-2 | mm – in | 9.2mm(±0.4) – 0.362in | 9.2mm(±0.4) – 0.362in | 9.1 mm – 0.36 in | 9.1 mm – 0.36 in |
| Water Absorption | ISO 10545-3 | ( % ) | ≤ 0.5 | ≤ 0.5 | ≤ 0.7 | ≤ 0.7 |
| Abrasion Resistance | ISO 10545-7 | (PEI) | Class 4 | Class 4 | Class 4 | Class 4 |
| Scratch Hardness | EN 15771 | (Mohs) | 5 | 5 | 5 | 5 |
| Breaking Strength | ISO 10545-4 | (N) | ≥ 1300 | ≥ 1300 | ≥ 1300 | ≥ 1300 |
| Chemical Resistance | ISO 10545-13 | (GL) | Class GLA | Class GLA | Class GLA | Class GLA |
| Frost Resistance | ISO 10545-12 | Fully Resistant | Fully Resistant | Fully Resistant | Fully Resistant | |
| DCOF | ANSI A137.1 | (μ) | ≥ 0.70 | ≥ 0.70 | ≥ 0.70 | ≥ 0.70 |
