Concreto Series
Concreto captures the industrial side of concrete while also adding a subtle, soft element, allowing it flexibility in its application. Available in three neutral colours and two sizes
12″x24″ Tiles

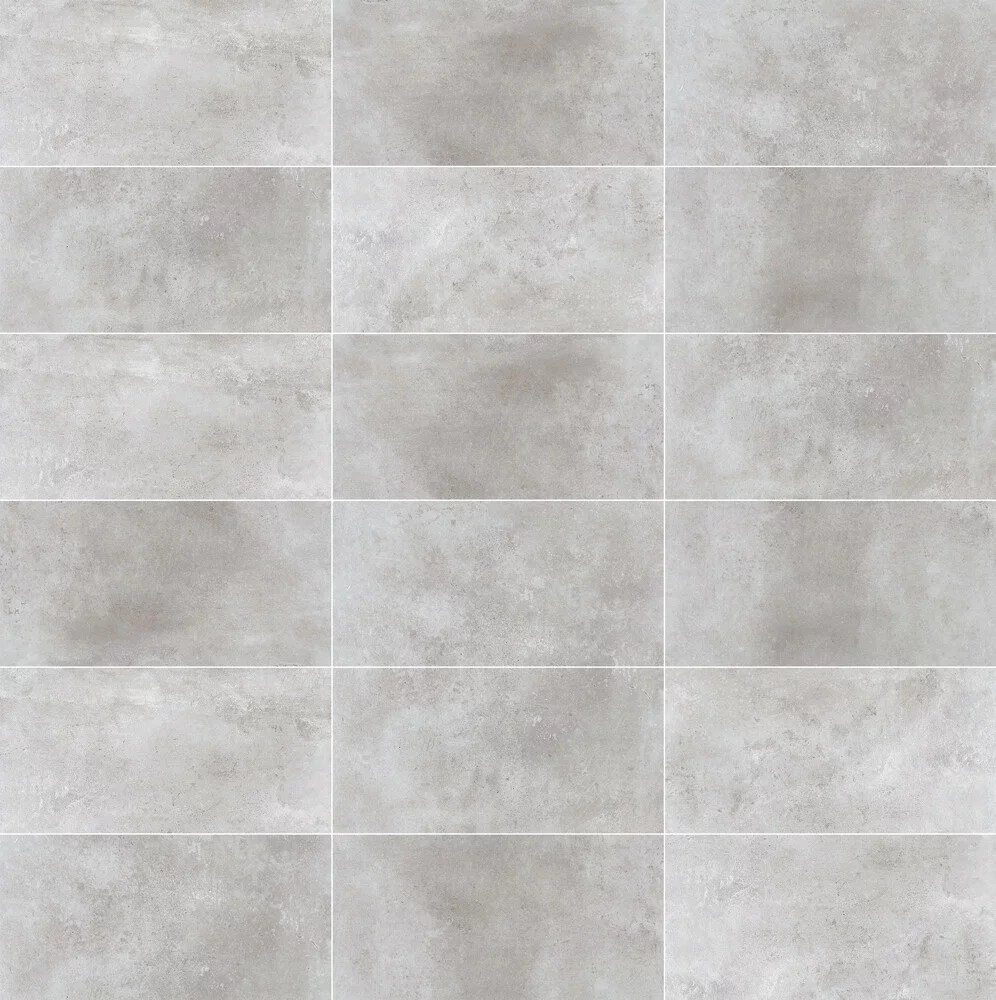

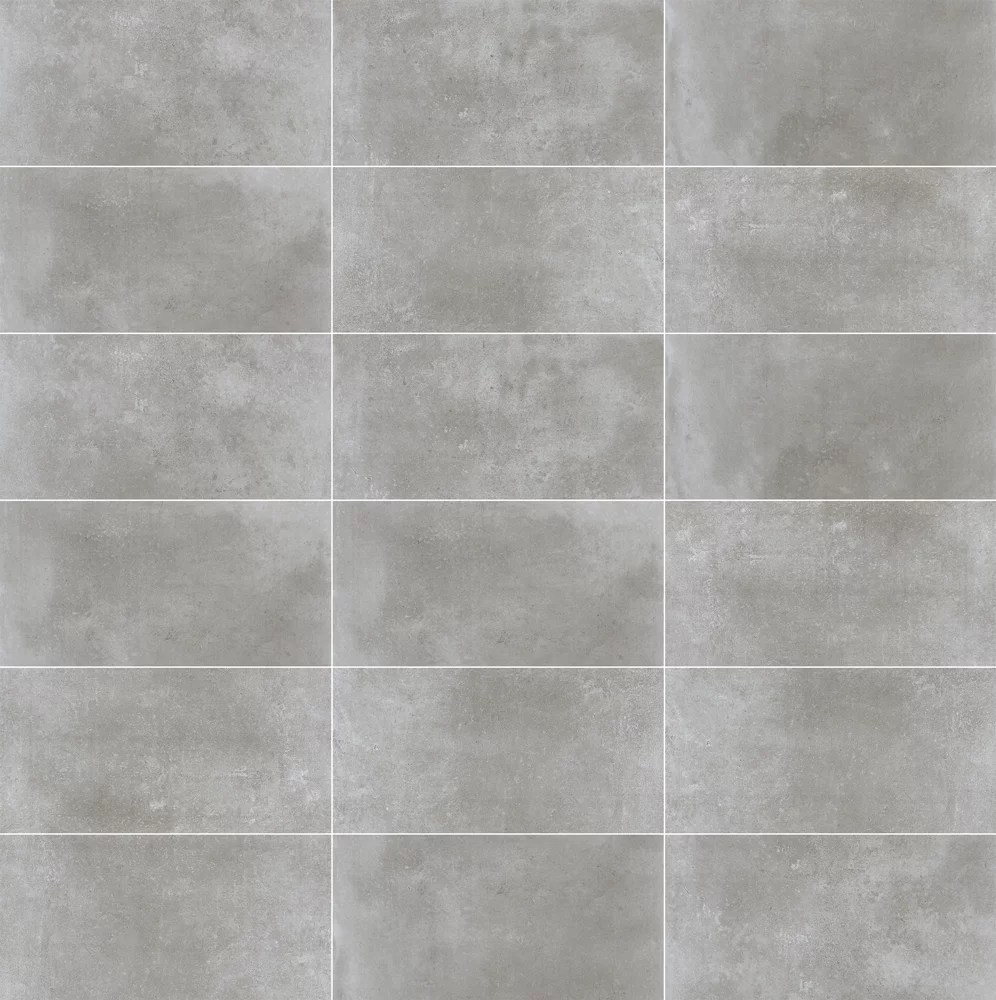

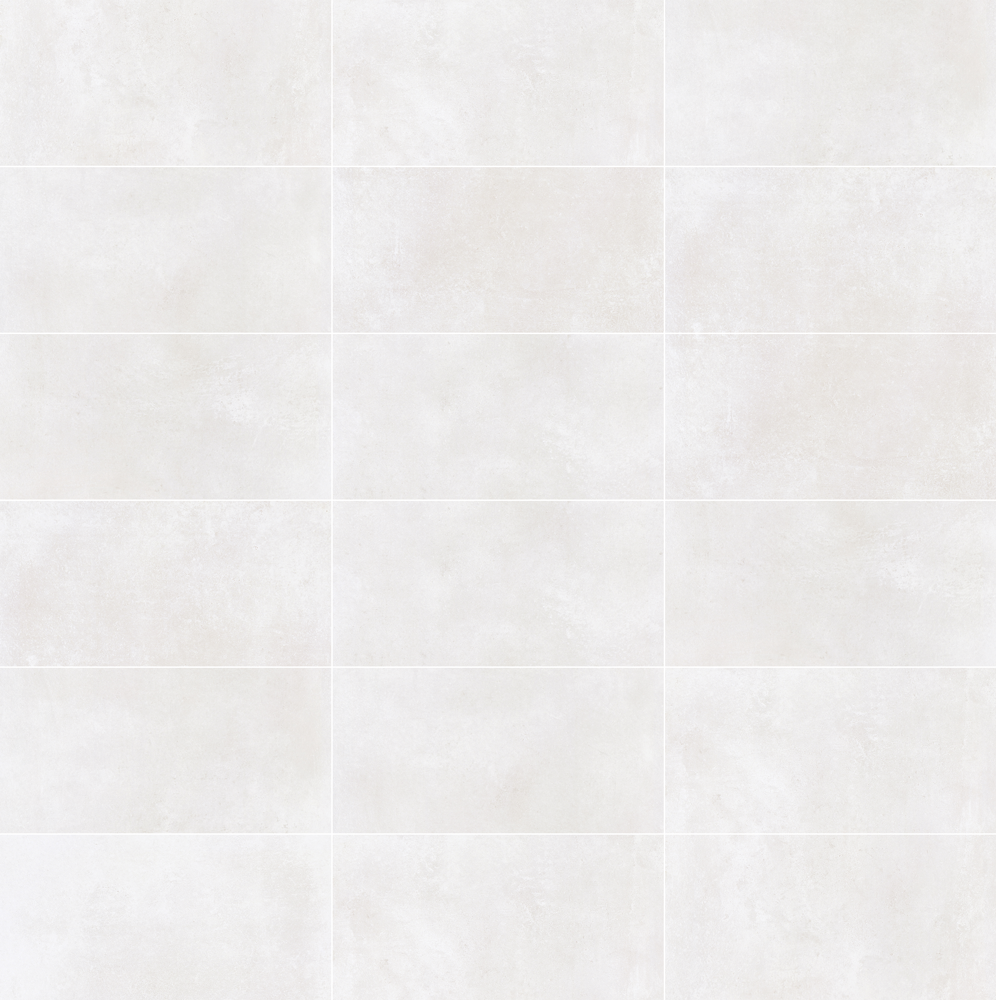

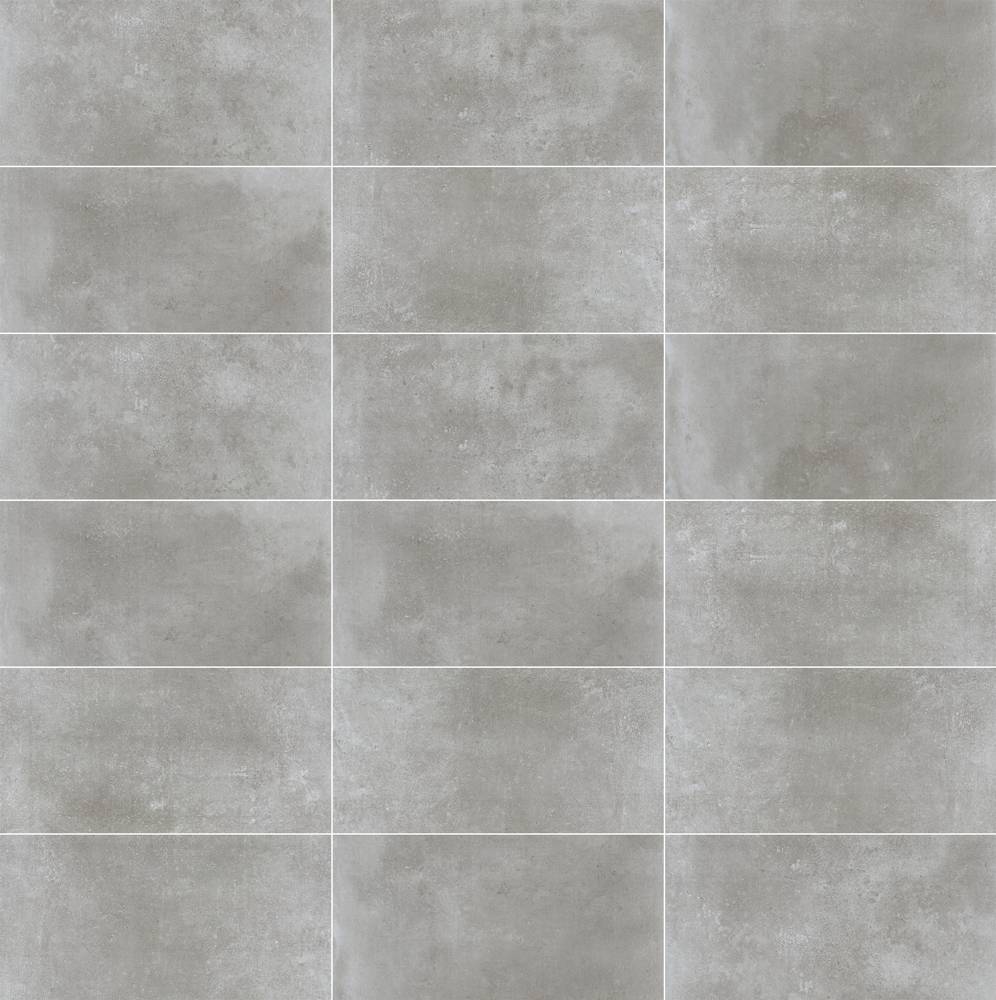

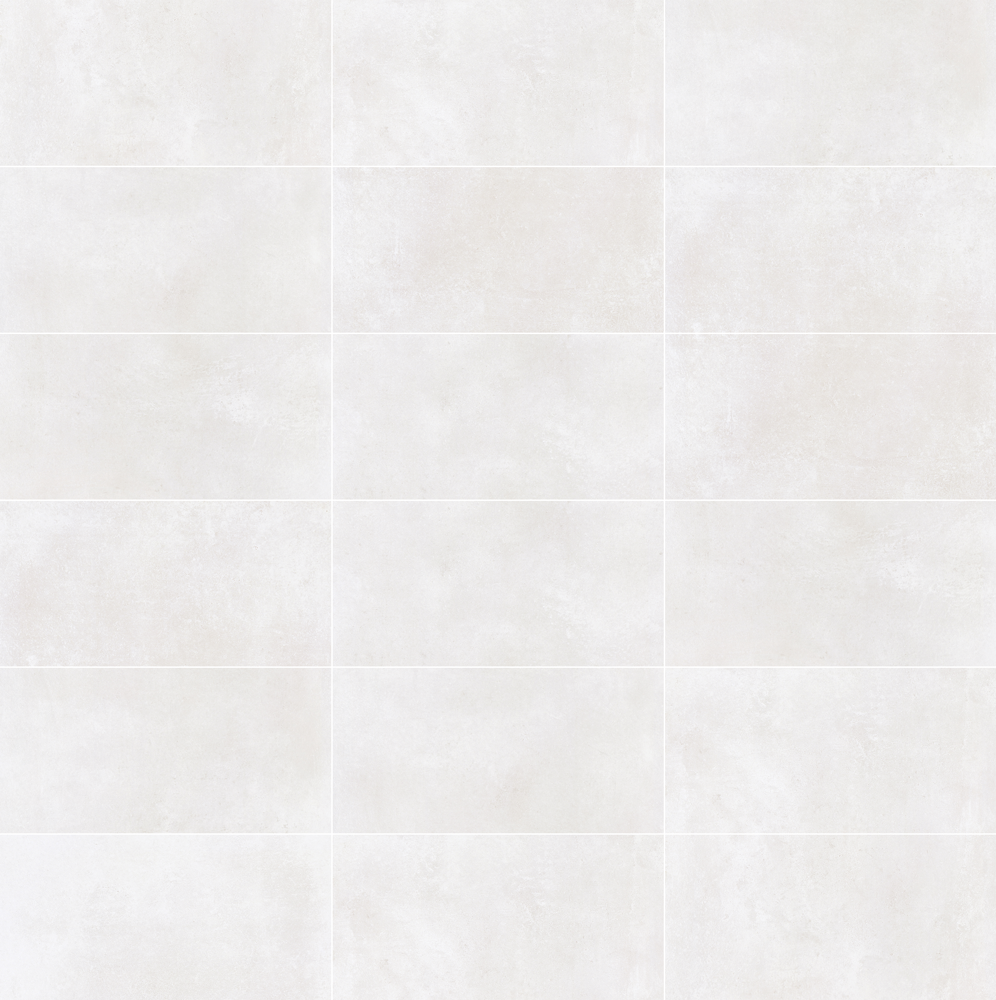

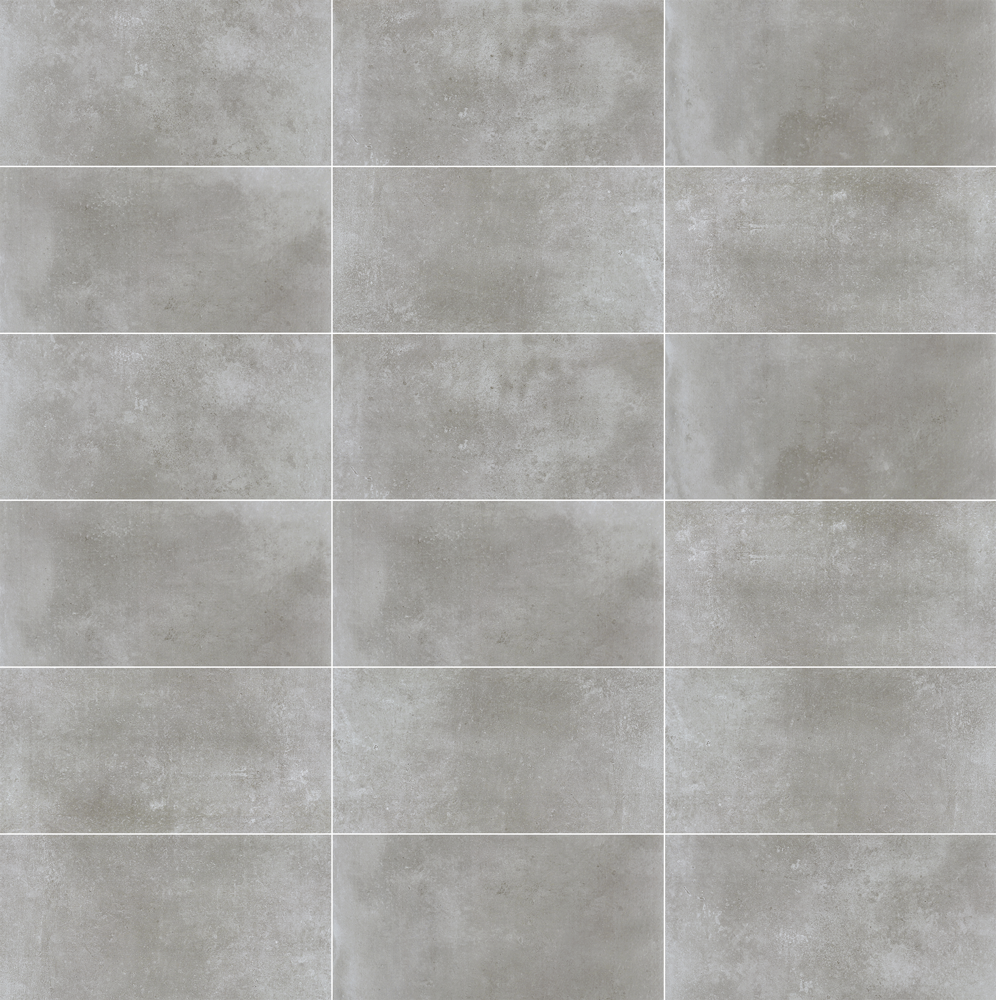

Variations

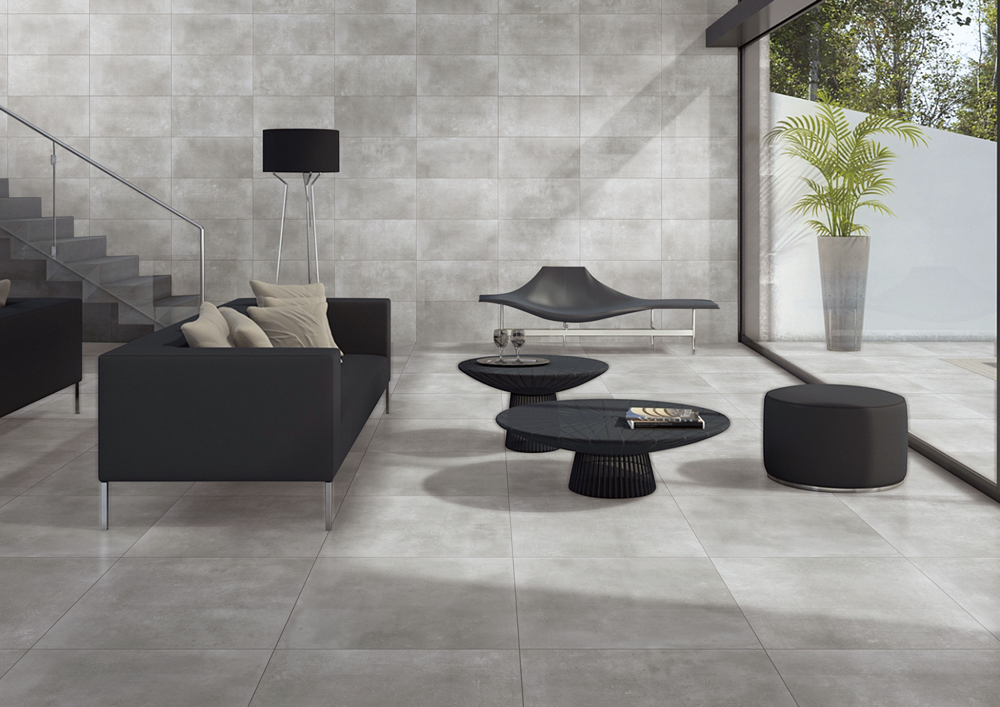

Installation Photos
|
|
|
|
General Specifications
| description | method | unit | 12 x 24 | 24 x 24 | 2 x 2 | 2″ Hexagon |
|---|---|---|---|---|---|---|
| Actual Size | ISO 10545-2 | mm – in | 299 x 600 mm – 11.8 x 23.6 in | 600 x 600 mm – 23.6 x 23.6 in | 298 x 298 mm – 11.73 x 11.73 in | 323 x 330 mm – 12.72 x 12.99 in |
| Thickness | ISO 10545-2 | mm – in | 9.8 mm – 0.39 in | 9.8 mm – 0.39 in | 9.8 mm – 0.39 in | 9.8 mm – 0.39 in |
| Water Absorption | ISO 10545-3 | ( % ) | ≤ 0.07 | ≤ 0.07 | ≤ 0.07 | ≤ 0.07 |
| Abrasion Resistance | ISO 10545-7 | (PEI) | Class 4 | Class 4 | Class 4 | Class 4 |
| Scratch Hardness | EN 15771 | (Mohs) | 5 | 5 | 5 | 5 |
| Breaking Strength | ISO 10545-4 | (N) | ≥ 1300 | ≥ 1300 | ≥ 1300 | ≥ 1300 |
| Chemical Resistance | ISO 10545-13 | (GL) | Class GLA | Class GLA | Class GLA | Class GLA |
| Frost Resistance | ISO 10545-12 | Fully Resistant | Fully Resistant | Fully Resistant | Fully Resistant | |
| DCOF | ANSI A137.1 | (μ) | ≥ 0.64 | ≥ 0.64 | ≥ 0.64 | ≥ 0.64 |
Packaging Information
| Description | Item Code | lbs/pc | pcs/box | lbs/box | sq ft/box | pcs/skid | sq ft/skid |
|---|---|---|---|---|---|---|---|
| Concreto Sand 24×24 Matte | 347-102 | 17.91 | 4 | 71.64 | 16 | 144 | 576 |
| Concreto Sand 12×24 Matte | 347-101 | 8.96 | 8 | 71.68 | 16 | 320 | 640 |
| Concreto Light Grey 24×24 Matte | 347-106 | 17.91 | 4 | 71.64 | 16 | 144 | 576 |
| Concreto Light Grey 12×24 Matte | 347-105 | 8.96 | 8 | 71.68 | 16 | 320 | 640 |
| Concreto Dark Grey 24×24 Matte | 347-104 | 17.91 | 4 | 71.64 | 16 | 144 | 576 |
| Concreto Dark Grey 12×24 Matte | 347-103 | 8.96 | 8 | 71.68 | 16 | 320 | 640 |
| Concreto Sand 2×2 Matte | 347-108 | 4.01 | 10 | 40.10 | 10 | 594 | 594.00 |
| Concreto Light Grey 2×2 Matte | 347-110 | 4.01 | 10 | 40.10 | 10 | 594 | 594.00 |
| Concreto Dark Grey 2×2 Matte | 347-112 | 4.01 | 10 | 40.10 | 10 | 594 | 594.00 |
| Concreto Sand 2″ Hexagon Matte | 347-107 | 4.41 | 10 | 44.10 | 10 | 450 | 450.00 |
| Concreto Light Grey 2″ Hexagon Matte | 347-109 | 4.41 | 10 | 44.10 | 10 | 450 | 450.00 |
| Concreto Dark Grey 2″ Hexagon Matte | 347-111 | 4.41 | 10 | 44.10 | 10 | 450 | 450.00 |
