Form Series
Handmade cement tile look in a contemporary package. Form cement look porcelain tile delivers a bold splash of design character to any installation. Curated patterns and unique formats work together to inspire and achieve the aesthetic of a premium handmade collection.
8″x8″ Ice Deco
8″x8″ Sand Deco
8″x8″ Tide Deco

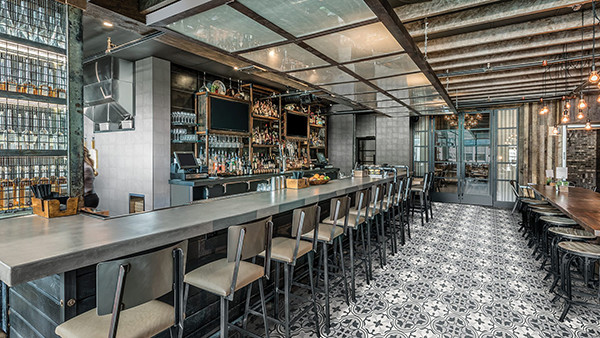

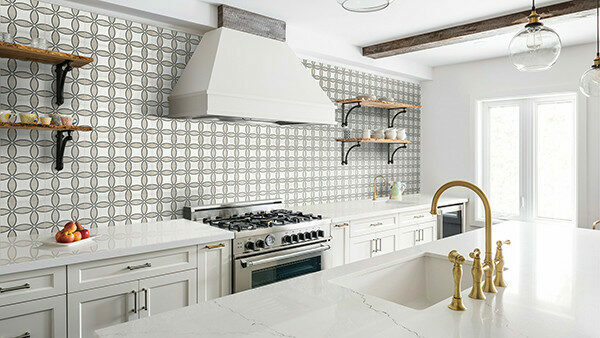

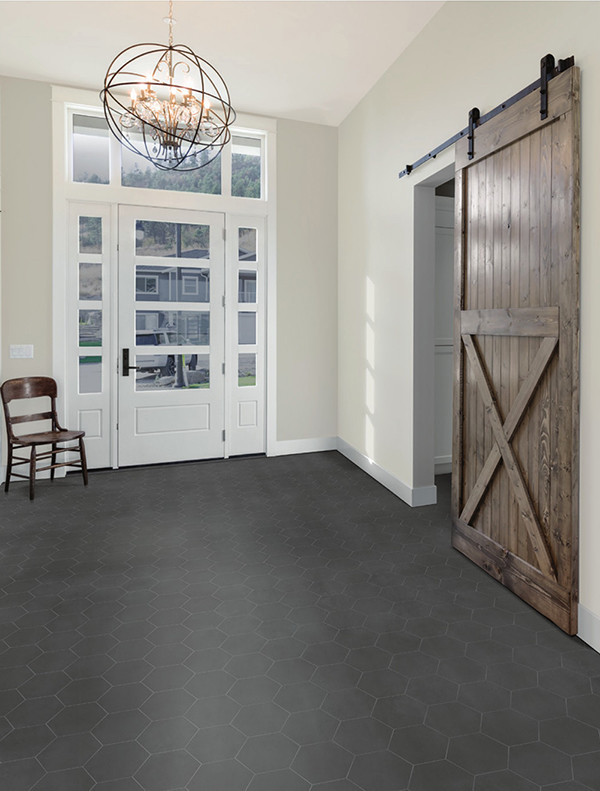

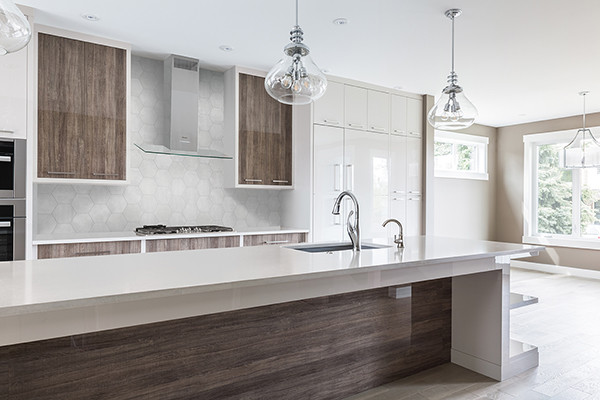

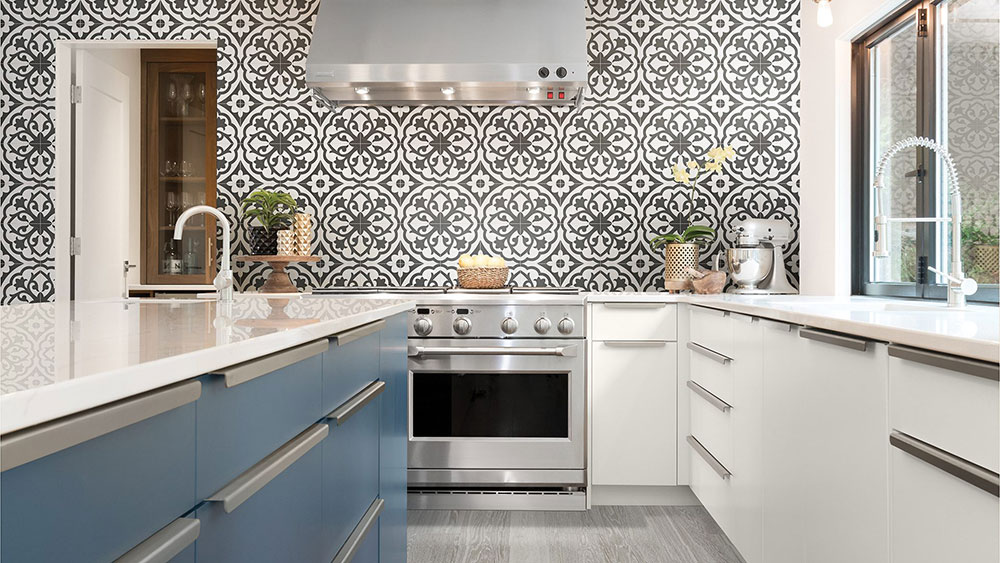

Installation Photos
Large Porcelain
|
|
|
|
General Specifications
| description | method | unit | 8 x 8 | 7 x 8 Hexagon |
|---|---|---|---|---|
| Thickness | mm – in | 9 mm – 11/32 in | 9 mm – 11/32 in | |
| Water Absorption | EN ISO 10545-3 | ( % ) | ≤ 0.5 | ≤ 0.5 |
| Abrasion Resistance | EN ISO 10545-7 | (PEI) | 4 | 4 |
| Scratch Hardness | (Mohs) | 6 | 6 | |
| Breaking Strength | EN ISO 10545-4 | (lbf) | ≥ 310 | ≥ 310 |
| Stain Resistance | ASTM C-1378 | Class A | Class A | |
| Chemical Resistance | EN ISO 10545-13 | (GL) | Class A – Resistant | Class A – Resistant |
| Frost Resistance | EN ISO 10545-12 | Resistant | Resistant | |
| DCOF (Wet) | ANSI B101.3 | ≥ 0.55 | > 0.55 | |
| Shade Variation | V1 – V4 | V1 – V4 |
Packaging Information
| Description | Item Code | lbs/pc | pcs/box | lbs/box | sq ft/box | pcs/skid | sq ft/skid |
|---|---|---|---|---|---|---|---|
| Form Ice Clover Deco 8×8 Matte | 834-60-313 | 1.61 | 17 | 31.84 | 7.32 | 1377 | 592.92 |
| Form Ice Baroque Deco 8×8 Matte | 834-60-314 | 1.61 | 17 | 31.84 | 7.32 | 1377 | 592.92 |
| Form Ice Compass Deco 8×8 Matte | 834-60-316 | 1.61 | 17 | 31.84 | 7.32 | 1377 | 592.92 |
| Form Ice Zenith Deco 8×8 Matte | 834-60-317 | 1.61 | 17 | 31.84 | 7.32 | 1377 | 592.92 |
| Form Monochrome Lotus Deco 8×8 Matte | 834-60-334 | 1.87 | 17 | 31.84 | 7.32 | 1377 | 592.92 |
| Form Ivory Hexagon 7×8 Matte | 834-60-400 | 1.14 | 10 | 11.35 | 2.80 | 1680 | 470.40 |
| Form Ice Hexagon 7×8 Matte | 834-60-402 | 1.14 | 10 | 11.35 | 2.80 | 1680 | 470.40 |
| Form Graphite Hexagon 7×8 Matte | 834-60-403 | 1.14 | 10 | 11.35 | 2.80 | 1680 | 470.40 |
