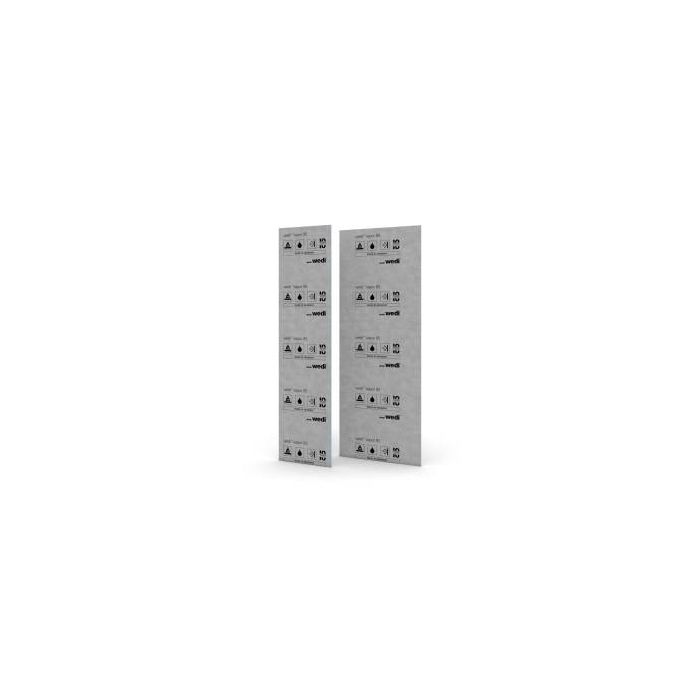

Wedi Building Panels Vapor 85 3x8'x1/2"
CA$216.95/ea CA$119.32/ea
SKU
WE-10702912
Technical properties of wedi Vapor 85
| Thickness | 12.5mm |
| Vapour barrier (polyethylene foil with special fleece layer) | 0.51mm |
| Water vapour diffusion equivalent air layer thickness Sd value | 92m |
| Resistance to water vapour diffusion (μ) DIN EN 1931 (sheet material vapour barrier) | 170,000 |
| Water vapour diffusion flow resistance Z value (sheet material vapour barrier) | 555.64 GPa • m² • s/kg 1.54 •109 m² • s/kg |
| Water vapour diffusion flow resistance (sheet material vapour barrier) | 4.065.287 s/m |
| Fire behaviour EN 13501, building material class | E |
| Adhesive tensile strength | 0.27 N/mm² |
| Linear coefficient of thermal expansion | 0.02 mm/mK |
More Information
| SKU | WE-10702912 |
|---|---|
| Weight (lbs) | 23.000000 |
| Height (Thickness) | 12.55mm - 0.5in |
| Length | 2500mm - 98.43 inches |
| Pieces per box | 0 |
| Pieces per pallet | 50 |
| Sold by piece/bundle | piece |
| Special Order | No |
| Width | 900mm - 35.43 inches |
