Chapter 3 Stream Stone is known for its neutral color palette and understated contemporary flair. It has been a staple
of the Jeffrey Court Chapter Series since 2010. The revamped Chapter 3 draws its inspiration from contemporary Scandinavian style and introduces subtle textures to the line. Perfectly combining neutral taupe and grey limestones with black and white marbles, Stream Stone creates both an inviting space and modern atmosphere.

PDF Catalog

Click the image below to start downloading the pamphlet for this series

Jeffrey Court Brochure Thumbnail

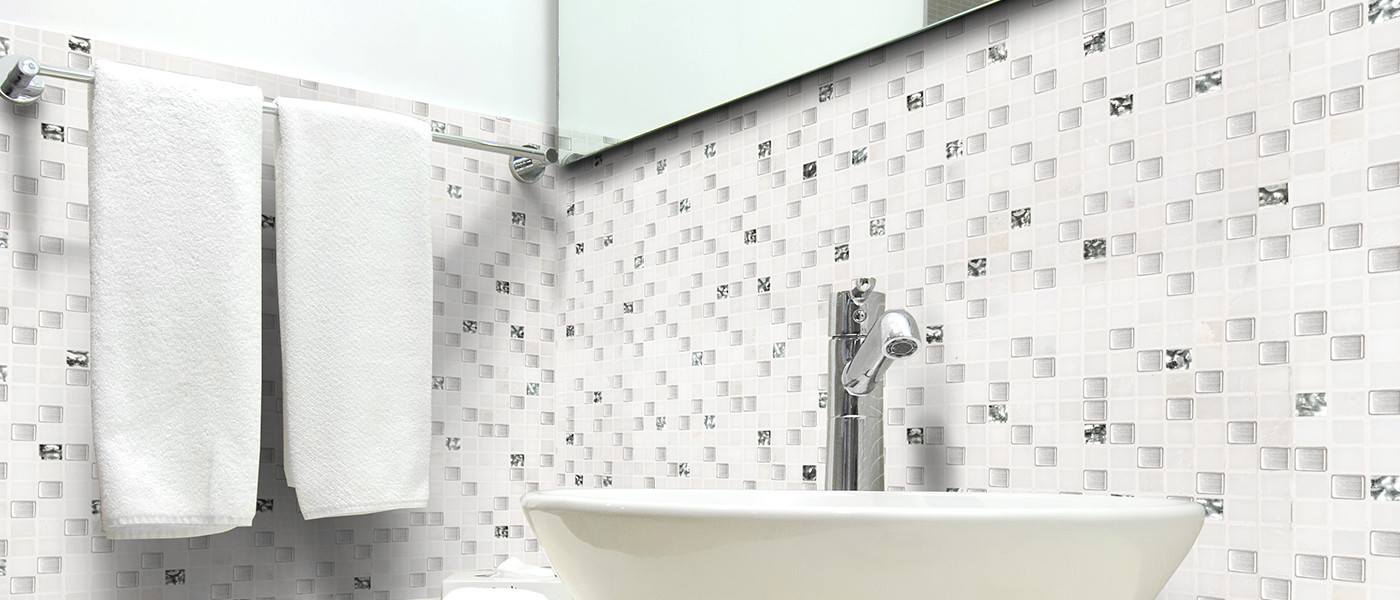

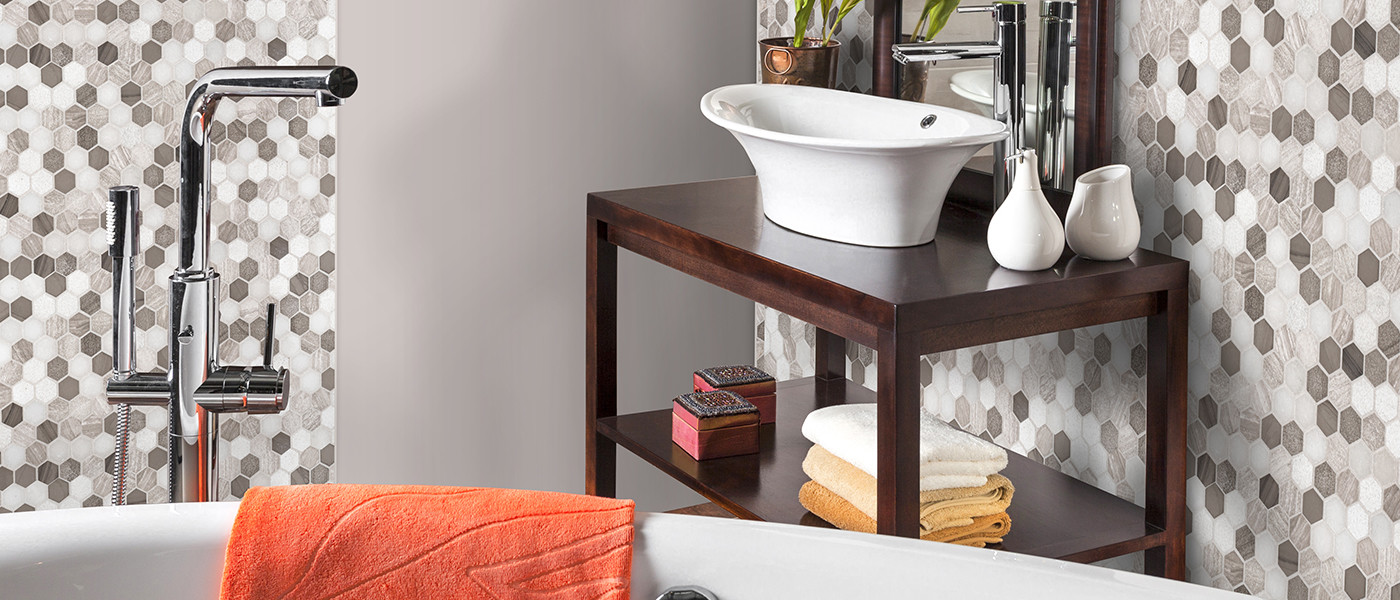

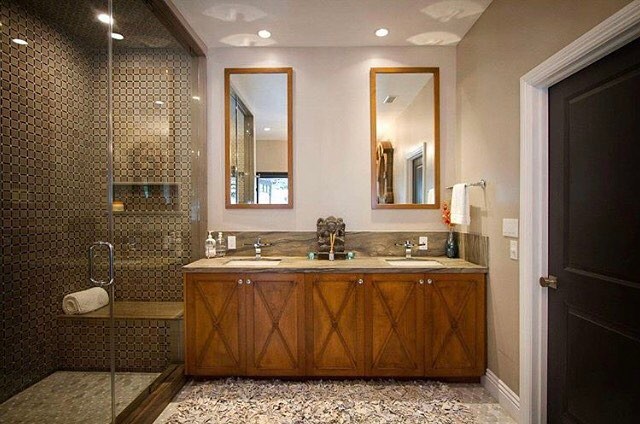

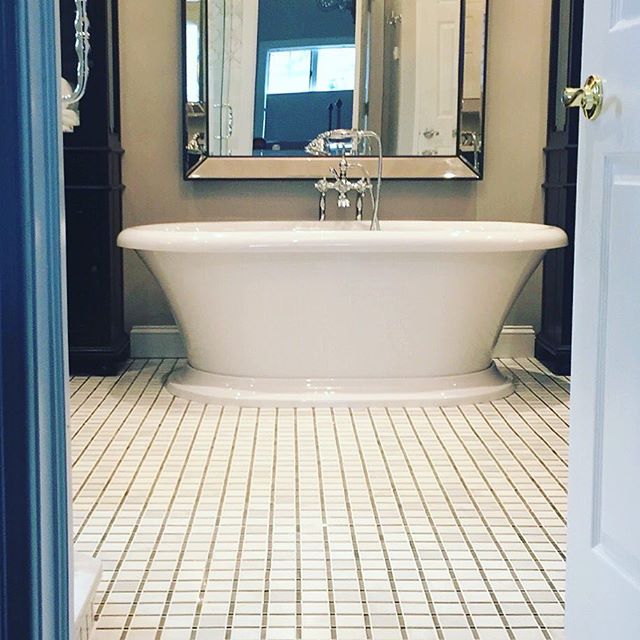

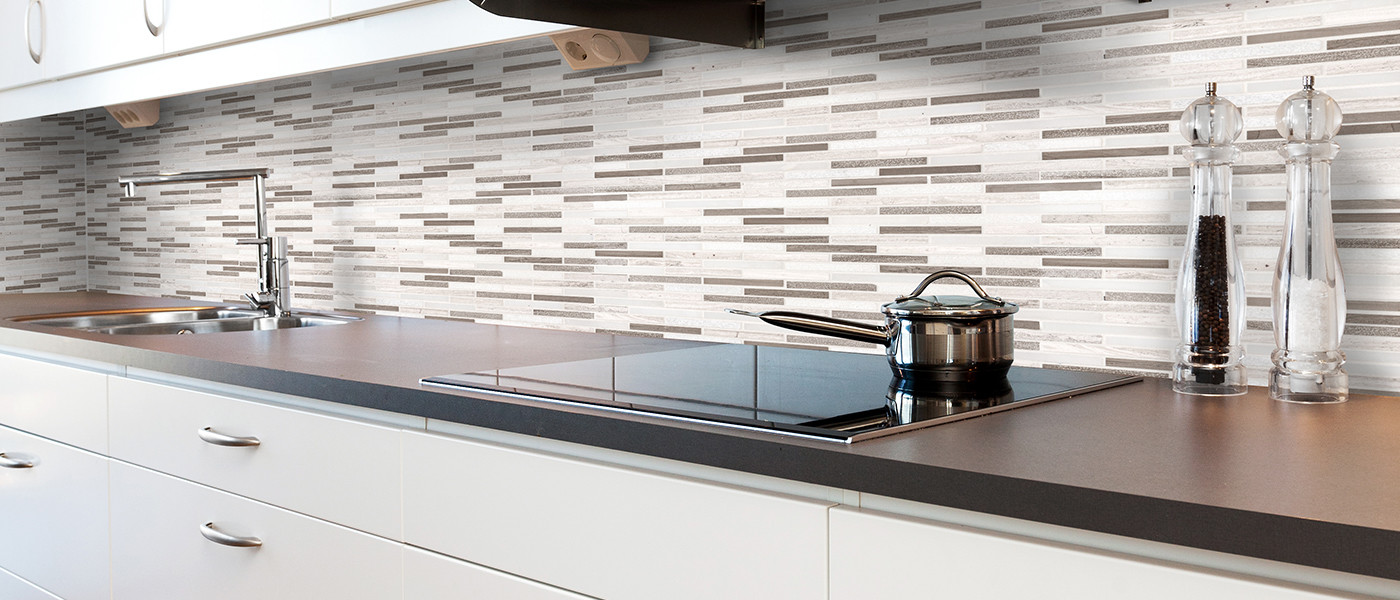

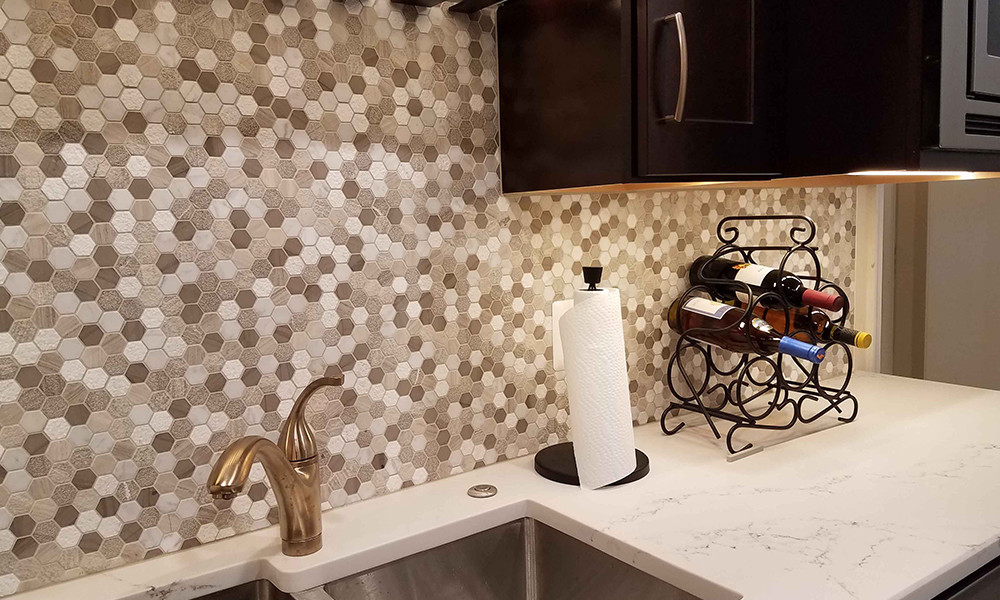

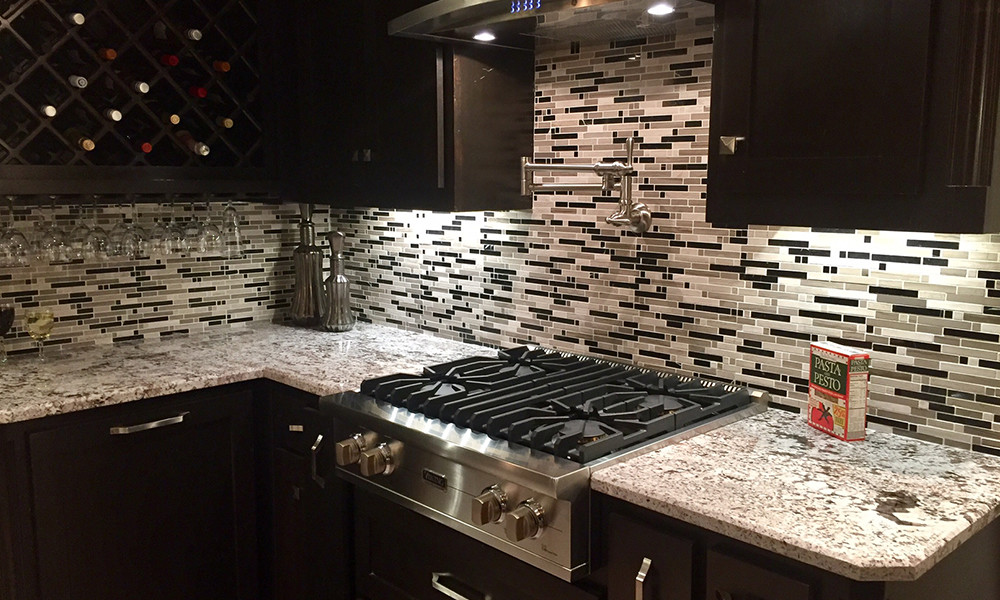

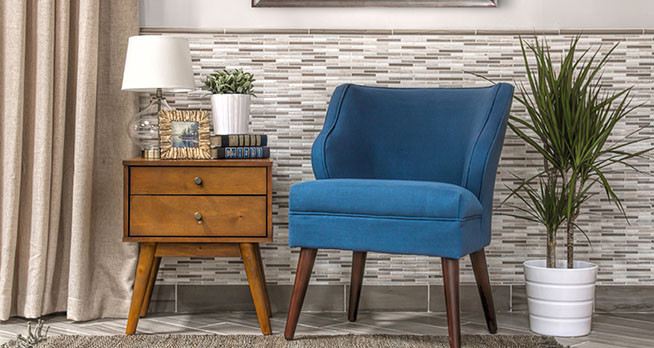

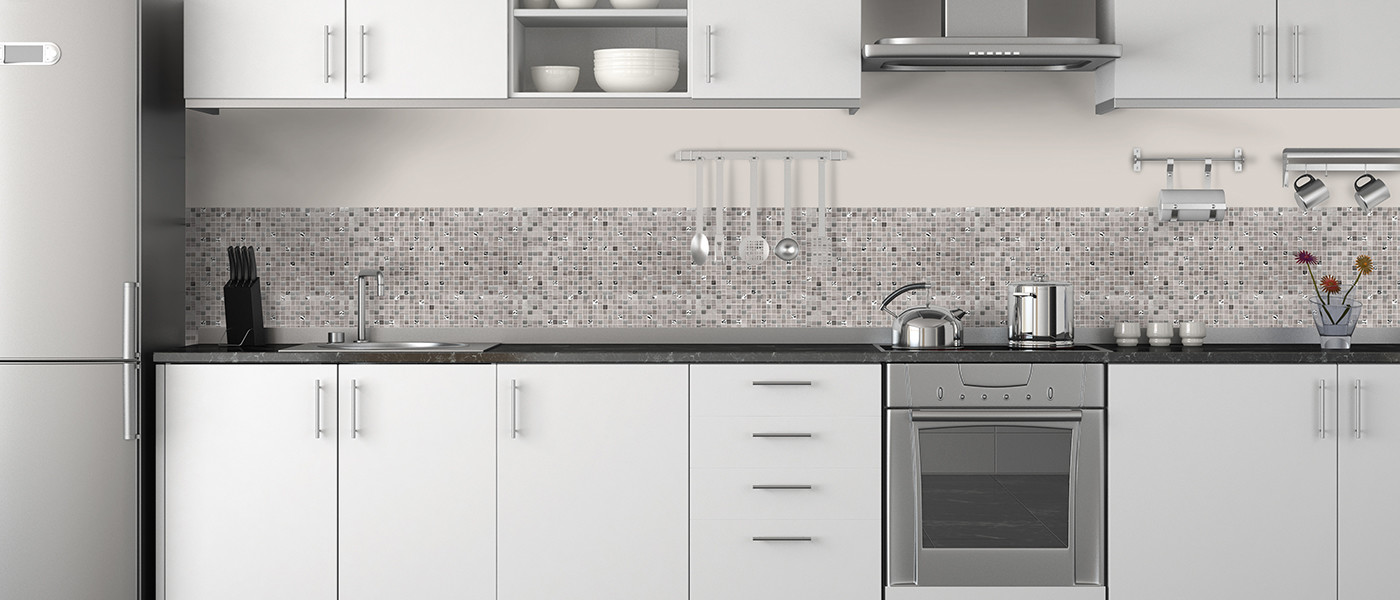

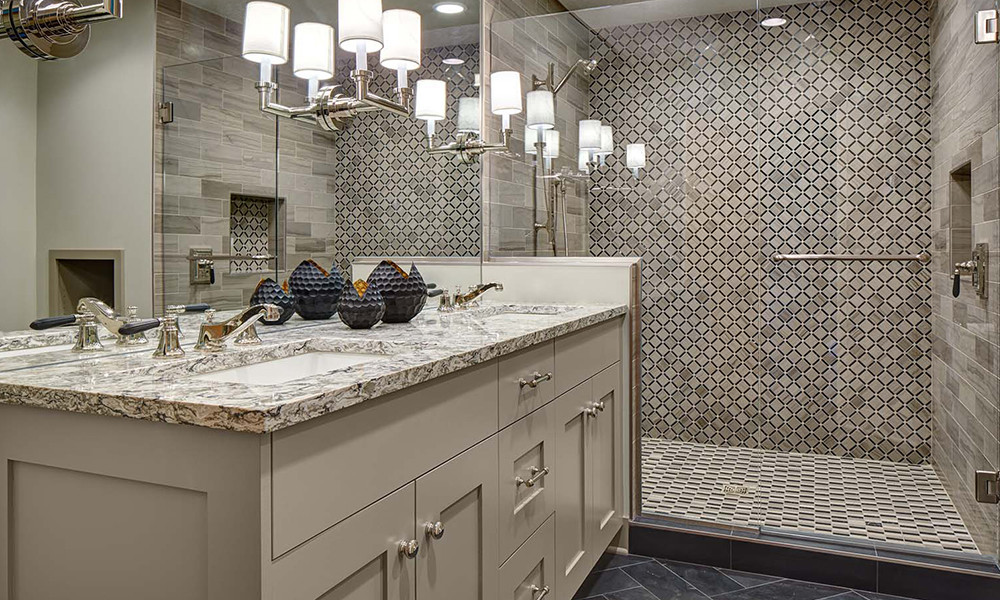

Installation Photos

Mosaics
Field Tiles
Trims

Product Testing

Description Method Unit West End White (Honed) West End White (Brushed) Transitional Taupe (Honed) Global Grey (Honed) Global Grey (Brushed)
Static COF (Dry) ASTM C-1028 (μ) 0.77 0.77 0.78 0.84 0.84
Static COF (Wet) ASTM C-1028 (μ) 0.63 0.63 0.62 0.70 0.70
Water Absorption ASTM C-97 0.14 0.14 1.37 7.64 7.64
Density ASTM C-97 lb/ft3 169.40 169.40 175.30 141.50 141.50
Break Strength (Dry) ASTM C-170 (PSI) 1122 1122 22404 9971 9971
Break Strength (Wet) ASTM C-170 (PSI) 8527 8527 18252 8835 8835

Packaging Information

Description Item Code lbs/pc pcs/box lbs/box sq ft/box pcs/skid sq ft/skid
1 inch Hexagon West End White JC-15184 4.20 10 42.00 9.08 360 326.88
Dome Moulding West End White JC-18116 0.62 30 18.60 1.80 480 18.00
Crown Moulding West End White JC-18117 1.49 15 22.35 2.40 240 38.40
Crown Moulding Bass Black JC-18419 1.36 12 16.32 1.92 1296 207.36
Dome Moulding Bass Black JC-18420 1.38 12 0.72 1.80 1296 77.76
4×12 Field Tile Global Grey Honed JC-30101 1.25 20 25.05 6.66 1080 359.64
6×18 Field Tile Global Grey Honed JC-30102 3.57 8 28.56 6.00 480 360.00
4×12 Field Tile Global Grey Brushed JC-30103 1.25 20 25.05 6.66 1080 359.64
6×18 Field Tile Global Grey Brushed JC-30104 3.88 8 31.02 6.00 480 360.00
Dome Moulding Global Grey JC-30106 0.56 30 16.80 1.80 480 28.80
Crown Moulding Global Grey JC-30107 1.30 15 19.50 2.40 240 38.40
3×6 Micro-Beveled Field Tile Global Grey JC-30108 0.52 40 20.80 5.00 2880 360.00
4×12 Field Tile Transitional Taupe JC-30201 1.23 20 24.60 6.66 1080 359.64
6×18 Field Tile Transitional Taupe Honed JC-30202 3.85 8 30.78 6.00 480 360.00
Dome Moulding Transitional Taupe JC-30206 0.60 30 18.00 1.80 480 28.80
Crown Moulding Transitional Taupe JC-30207 1.45 15 21.75 2.40 240 38.40
3×6 Micro-Beveled Field Tile Transitional Taupe JC-30208 0.60 40 24.00 5.00 2880 360.00
4×12 Field Tile West End White Honed JC-30301 1.35 20 27.00 6.66 1080 359.64
6×18 Field Tile West End White Honed JC-30302 4.12 8 32.94 6.00 480 360.00
4×12 Field Tile West End White Brushed JC-30303 1.35 20 27.00 6.66 1080 359.64
6×18 Field Tile West End White Brushed JC-30304 4.12 8 32.94 6.00 480 360.00
3×6 Micro-Beveled Field Tile West End White JC-30308 0.62 40 24.80 5.00 2880 360.00
Moderna Mosaic Pattern A JC-30901 3.99 10 39.90 10.42 360 375.16
Moderna Mosaic Pattern B JC-30902 4.46 10 44.60 10.42 360 375.16
Moderna Mosaic Pattern C JC-30903 4.08 10 40.80 10.42 360 375.16
Sleek Mosaic Pattern A JC-30904 4.69 10 46.90 10.00 360 360.00
Sleek Mosaic Pattern B JC-30905 4.79 10 47.90 10.00 360 360.00
Sleek Mosaic Pattern C JC-30906 4.14 10 41.40 10.00 360 360.00
Modish Mosaic Pattern A JC-30907 4.13 10 41.30 10.00 360 360.00
Modish Mosaic Pattern B JC-30908 2.13 10 21.25 10.00 360 360.00
Modernique Mosaic Pattern A JC-30909 4.27 10 42.70 10.00 360 360.00
Modernique Mosaic Pattern B JC-30910 4.27 10 42.70 10.00 360 360.00
Modernique Mosaic Pattern C JC-30911 4.27 10 42.70 10.00 360 360.00
Hip Listels Pattern A JC-30914 1.22 20 24.40 4.58 360 82.44
Moderna Mosaic Pattern D JC-30916 4.59 10 45.90 10.42 360 375.12
Platinum Mosaic Global Grey JC-30917 2.75 10 27.50 9.59 360 345.24
1 inch Hexagon Global Grey JC-30918 3.63 10 36.30 9.08 360 326.88
1 inch Hexagon Transitional Taupe JC-30919 3.58 10 35.80 9.08 360 326.88
1 inch Hexagon Pattern C JC-30920 3.75 10 37.50 9.08 360 326.88
Hip Listels Pattern B JC-30921 0.92 20 18.30 4.88 360 87.84
Lustrous Mosaic Pattern B JC-30922 3.29 10 32.90 8.87 360 319.32
Lustrous Mosaic Pattern C JC-30923 3.29 10 32.90 8.87 360 319.32
Lustrous Mosaic Pattern A JC-30924 3.29 10 32.90 8.87 360 319.32
Platinum Mosaic Transitional Taupe JC-30925 2.95 10 29.50 9.59 360 345.24
Platinum Mosaic West End White JC-30926 3.09 10 30.90 9.59 360 345.24
