Jeffrey Court Chapter 5: Studio Gazette
Chapter 5 Studio Gazette® is a machine-made, four color matte ceramic line that also features chic retro-inspired glass elements. We consider this matte ceramic line a cousin to our Chapter 2 Vintage Studio collection as it borrows some of its well-known design traditions, hues, and classic style of Vintage Studio® while incorporating its own unique assortment of field tile and mosaic offerings.
1″ Hexagon Ceramic Mosaics
Icon Ceramic Mosaics
Retro Ceramic Mosaics
6″x12″ Field Tile
3″x12″ Field Tile
3″x6″ Field Tiles
Hexagon Field Tiles
3″x6″ Single Bullnose
3″x3″ Double Bullnose
PDF Catalog
Click the image below to start downloading the pamphlet for this series

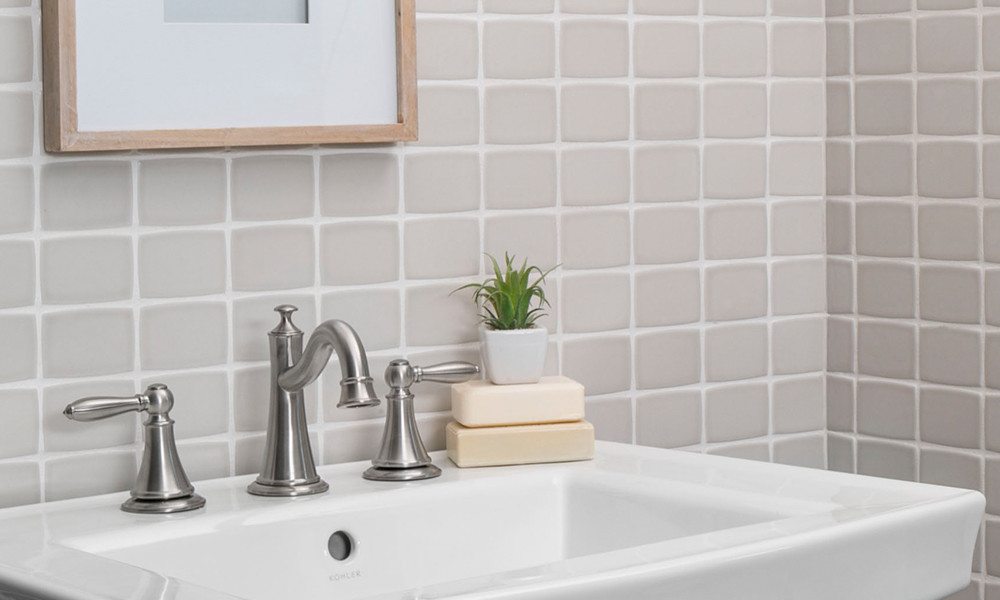

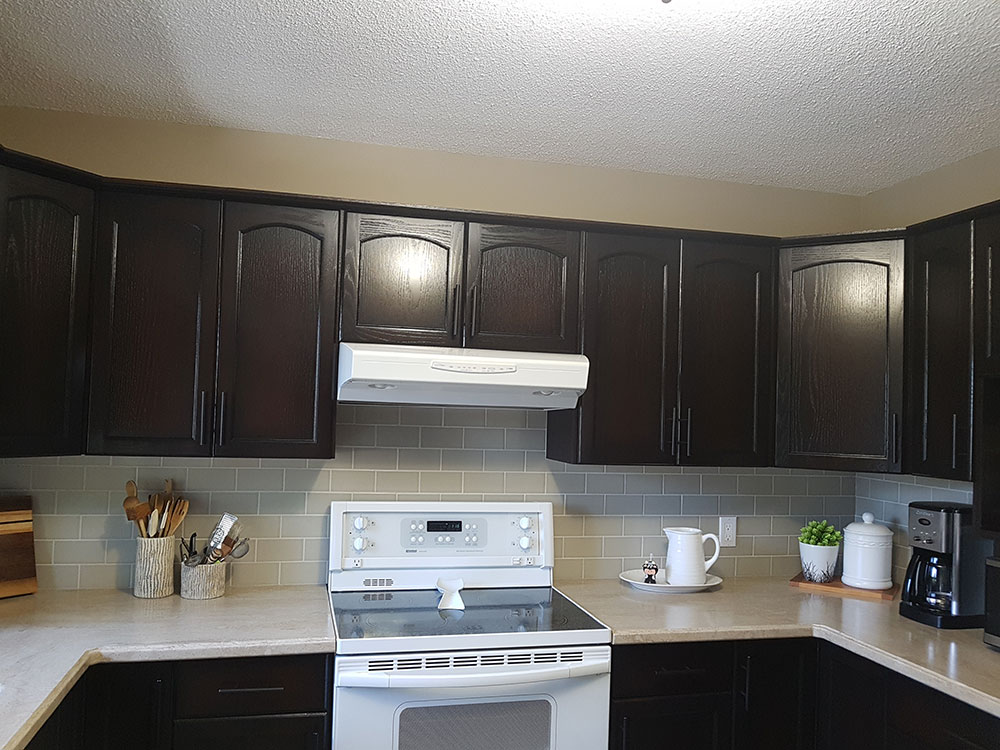

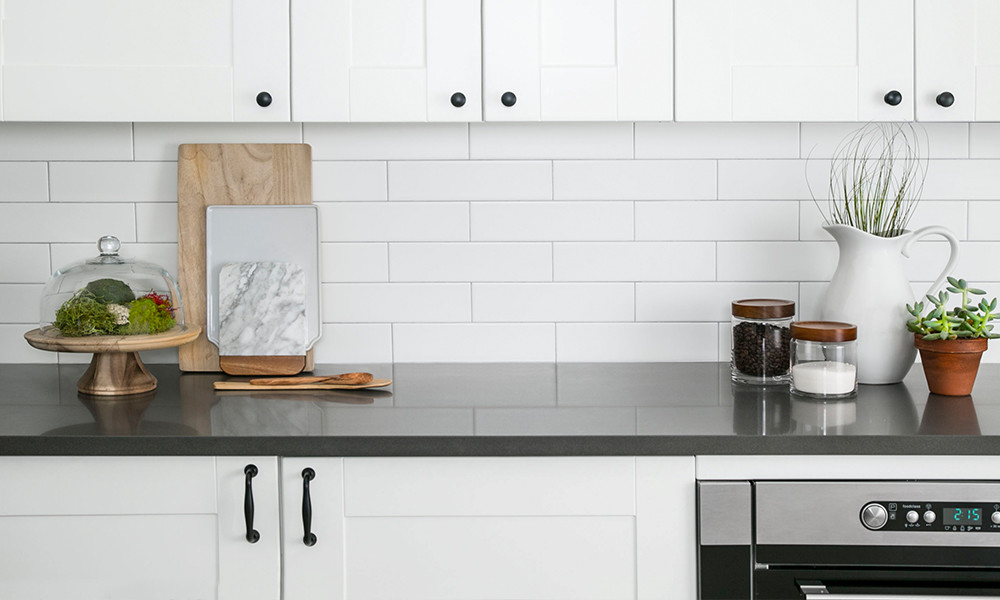

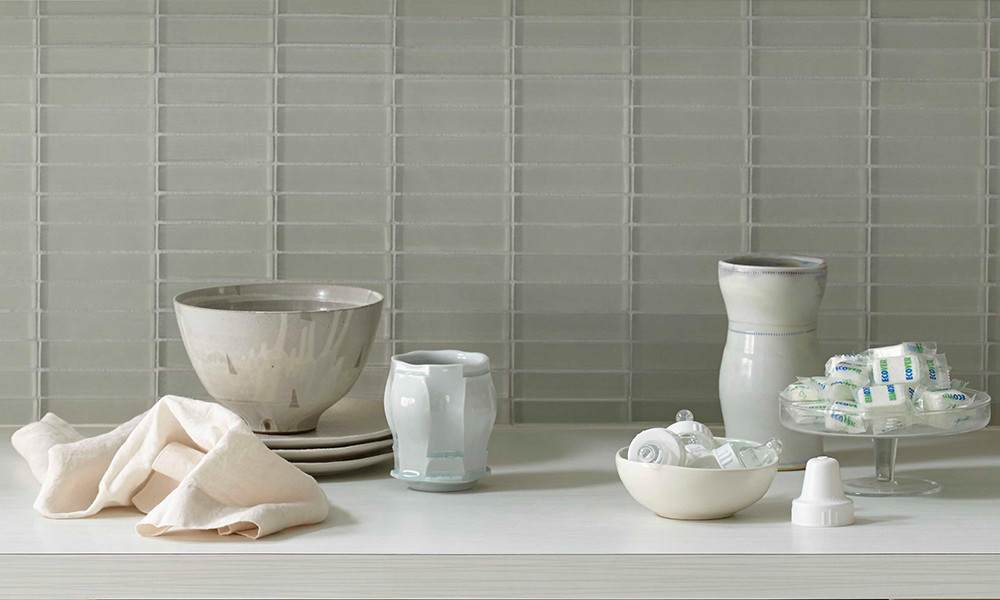

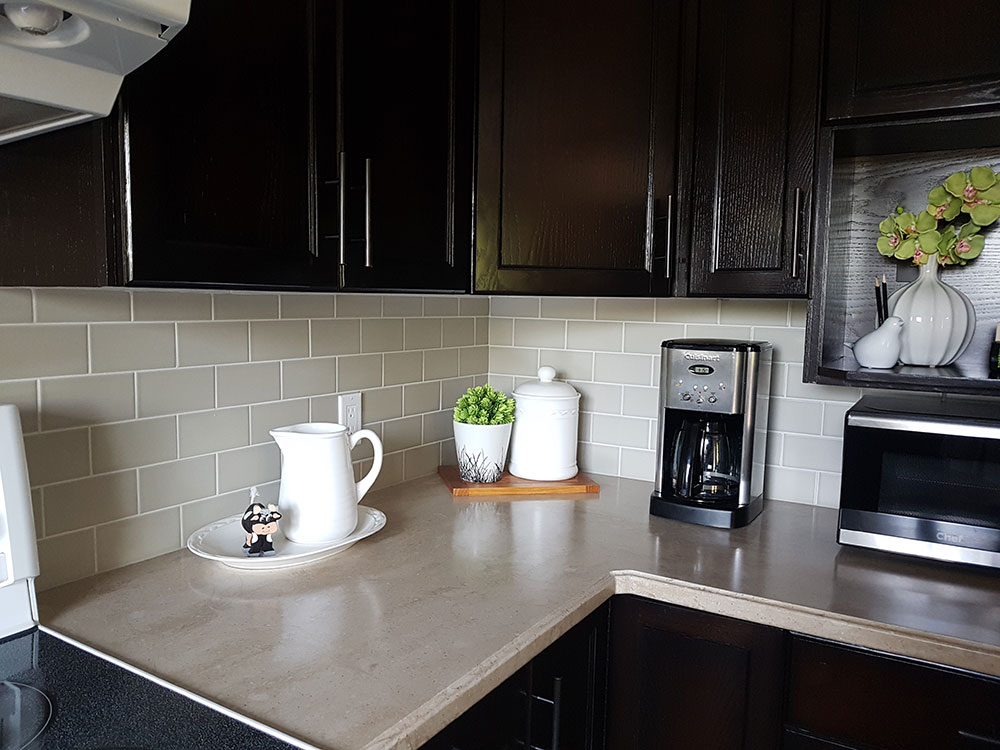

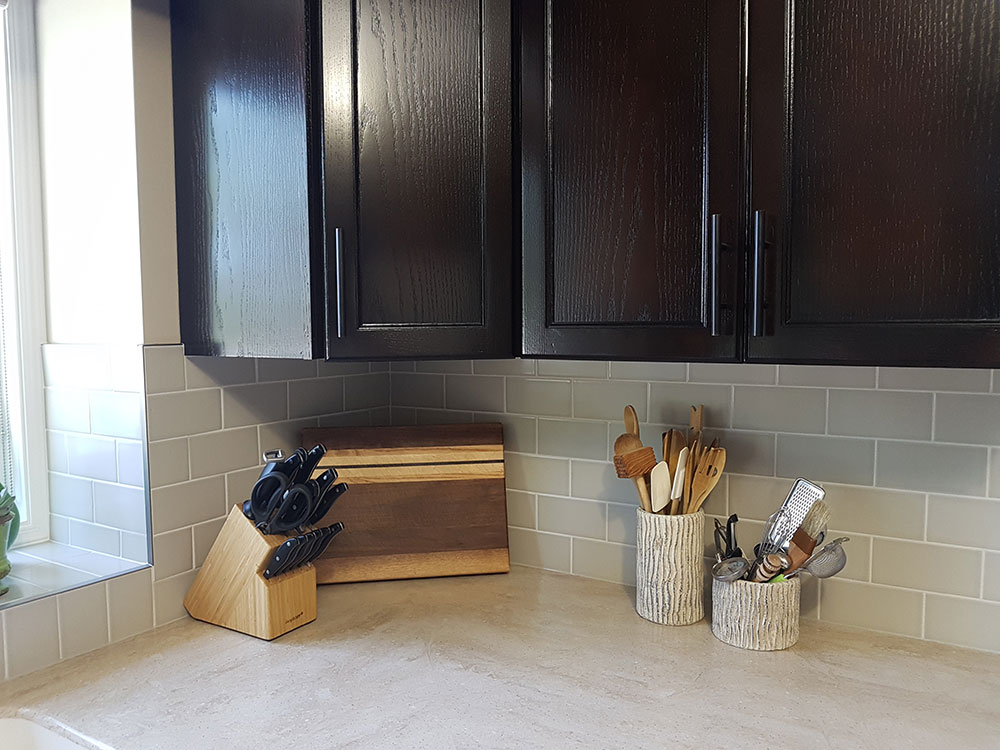

Installation Photos
|
|
|
|
Product Testing
| Description | ASTM | ANSI | Results |
|---|---|---|---|
| Static COF (Dry) | C-1028 | Varies | 0.75 |
| Static COF (Wet) | C-1028 | Varies | 0.77 |
| Water Absorption | C-373 | Non-vitreous | 16.3% |
| Thinckness | 10mm | ||
| Break Strength | C-648 | >125lbf | 269lbf |
| Abrasion | C-1027 | Class II | 600 Rev. |
| Scratch Hardness | Mohs Scale | 6.0 Mohs |
Packaging Information
| Description | Item Code | lbs/pc | pcs/box | lbs/box | sq ft/box | pcs/skid | sq ft/skid |
|---|---|---|---|---|---|---|---|
| Hue Glass Stack Mosaic Aluminum | JC-51520 | 4.20 | 10 | 42.00 | 9.38 | 360 | 337.68 |
| Hue Glass Stack Mosaic Twine | JC-51521 | 4.20 | 10 | 42.00 | 9.38 | 360 | 337.68 |
| 3×6 Field Tile – Starry White | JC-51527 | 0.43 | 80 | 34.40 | 10.00 | 3840 | 480.00 |
| 6×12 Field Tile – Starry White | JC-51528 | 1.69 | 20 | 33.70 | 10.00 | 960 | 480.00 |
| 3×12 Field Tile – Starry White | JC-51529 | 0.85 | 40 | 34.00 | 10.00 | 1920 | 480.00 |
| Hexagon Field Tile – Starry White | JC-51530 | 0.98 | 41 | 40.20 | 10.91 | 3116 | 828.86 |
| 3×3 Double Bullnose – Starry White | JC-51531 | 0.19 | 24 | 4.56 | 1.50 | 6720 | 1,276.80 |
| 3×6 Single Bullnose – Starry White | JC-51532 | 0.41 | 80 | 14.56 | 10.00 | 3200 | 400.00 |
| Ramp Edge – Starry White | JC-51533 | 0.03 | 70 | 2.10 | 1.40 | 19600 | 392.00 |
| Rail Moulding – Starry White | JC-51534 | 0.19 | 15 | 2.85 | 0.54 | 4200 | 151.20 |
| Sash Moulding – Starry White | JC-51535 | 0.52 | 28 | 14.56 | 2.91 | 2352 | 244.61 |
| Grand Moulding – Starry White | JC-51536 | 0.76 | 15 | 11.40 | 2.76 | 1260 | 231.84 |
| 1 inch Hexagon Mosaic – Crescent White | JC-51537 | 1.95 | 15 | 29.25 | 13.17 | 540 | 474.12 |
| Icon Mosaic – Starry White | JC-51538 | 3.23 | 10 | 32.30 | 10.74 | 450 | 483.30 |
| Retro Mosaic – Starry White | JC-51539 | 2.68 | 10 | 26.80 | 8.88 | 450 | 399.60 |
| 3×6 Field Tile – Crisp Linen | JC-51540 | 0.43 | 80 | 34.40 | 10.00 | 3840 | 480.00 |
| 6×12 Field Tile – Crisp Linen | JC-51541 | 1.69 | 20 | 33.70 | 10.00 | 960 | 480.00 |
| 3×12 Field Tile – Crisp Linen | JC-51542 | 0.85 | 40 | 34.00 | 10.00 | 1920 | 480.00 |
| Hexagon Field Tile – Crisp Linen | JC-51543 | 0.98 | 41 | 40.20 | 10.91 | 3116 | 828.86 |
| 3×3 Double Bullnose – Crisp Linen | JC-51544 | 0.19 | 24 | 4.56 | 1.50 | 6720 | 1,276.80 |
| 3×6 Single Bullnose – Crisp Linen | JC-51545 | 0.41 | 80 | 14.56 | 10.00 | 3200 | 400.00 |
| Ramp Edge – Crisp Linen | JC-51546 | 0.03 | 70 | 2.10 | 1.40 | 19600 | 392.00 |
| Rail Moulding – Crisp Linen | JC-51547 | 0.19 | 15 | 2.85 | 0.54 | 4200 | 151.20 |
| Sash Moulding – Crisp Linen | JC-51548 | 0.52 | 28 | 14.56 | 2.91 | 2352 | 244.61 |
| Grand Moulding – Crisp Linen | JC-51549 | 0.76 | 15 | 11.40 | 2.76 | 1260 | 231.84 |
| Icon Mosaic – Crisp Linen | JC-51550 | 3.23 | 10 | 32.30 | 10.74 | 450 | 483.30 |
| Retro Mosaic – Crisp Linen | JC-51551 | 2.68 | 10 | 26.80 | 8.88 | 450 | 399.60 |
| 3×6 Field Tile – Mountain Mist | JC-51552 | 0.43 | 80 | 34.40 | 10.00 | 3840 | 480.00 |
| 6×12 Field Tile – Mountain Mist | JC-51553 | 1.69 | 20 | 33.70 | 10.00 | 960 | 480.00 |
| 3×12 Field Tile – Mountain Mist | JC-51554 | 0.85 | 40 | 34.00 | 10.00 | 1920 | 480.00 |
| Hexagon Field Tile – Mountain Mist | JC-51555 | 0.98 | 41 | 40.20 | 10.91 | 3116 | 828.86 |
| 3×3 Double Bullnose – Mountain Mist | JC-51556 | 0.19 | 24 | 4.56 | 1.50 | 6720 | 1,276.80 |
| 3×6 Single Bullnose – Mountain Mist | JC-51557 | 0.41 | 80 | 14.56 | 10.00 | 3200 | 400.00 |
| Ramp Edge – Mountain Mist | JC-51558 | 0.03 | 70 | 2.10 | 1.40 | 19600 | 392.00 |
| Rail Moulding – Mountain Mist | JC-51559 | 0.19 | 15 | 2.85 | 0.54 | 4200 | 151.20 |
| Sash Moulding – Mountain Mist | JC-51560 | 0.52 | 28 | 14.56 | 2.91 | 2352 | 244.61 |
| Grand Moulding – Mountain Mist | JC-51561 | 0.76 | 15 | 11.40 | 2.76 | 1260 | 231.84 |
| Icon Mosaic – Mountain Mist | JC-51562 | 3.23 | 10 | 32.30 | 10.74 | 450 | 483.30 |
| Retro Mosaic – Mountain Mist | JC-51563 | 2.68 | 10 | 26.80 | 8.88 | 450 | 399.60 |
| 3×6 Field Tile – Enchanted Shadow | JC-51564 | 0.43 | 80 | 34.40 | 10.00 | 3840 | 480.00 |
| 6×12 Field Tile – Enchanted Shadow | JC-51565 | 1.69 | 20 | 33.70 | 10.00 | 960 | 480.00 |
| 3×12 Field Tile – Enchanted Shadow | JC-51566 | 0.85 | 40 | 34.00 | 10.00 | 1920 | 480.00 |
| Hexagon Field Tile – Enchanted Shadow | JC-51567 | 0.98 | 41 | 40.20 | 13.45 | 3116 | 1022.05 |
| 3×3 Double Bullnose – Enchanted Shadow | JC-51568 | 0.19 | 24 | 4.56 | 1.50 | 6720 | 1,276.80 |
| 3×6 Single Bullnose – Enchanted Shadow | JC-51569 | 0.41 | 80 | 14.56 | 10.00 | 3200 | 400.00 |
| Ramp Edge – Enchanted Shadow | JC-51570 | 0.03 | 70 | 2.10 | 1.40 | 19600 | 392.00 |
| Rail Moulding – Enchanted Shadow | JC-51571 | 0.19 | 15 | 2.85 | 0.54 | 4200 | 151.20 |
| Sash Moulding – Enchanted Shadow | JC-51572 | 0.52 | 28 | 14.56 | 2.91 | 2352 | 244.61 |
| Grand Moulding – Enchanted Shadow | JC-51573 | 0.76 | 15 | 11.40 | 2.76 | 1260 | 231.84 |
| Icon Mosaic- Enchanted Shadow | JC-51574 | 3.23 | 10 | 32.30 | 10.74 | 450 | 483.30 |
| Retro Mosaic – Enchanted Shadow | JC-51575 | 2.68 | 10 | 26.80 | 8.88 | 450 | 399.60 |
| Petal Glass Mosaic – White | JC-51576 | 2.85 | 10 | 28.50 | 7.64 | 360 | 275.04 |
| Petal Glass Mosaic – Taupe | JC-51577 | 2.85 | 10 | 28.50 | 7.64 | 360 | 275.04 |
