Mayfair Porcelain Tile Series

Mayfair Series

The world’s most desired marbles, executed in porcelain. The perfect combination of simplicity and luxury can be found within the Mayfair Series. Mayfair’s timeless aesthetic offers natural stone-like variations and textures, ranging from classic to linear marble formations which are sophisticated yet versatile. The beauty and authenticity of Mayfair’s stunningly realistic patterns are a flawless reflection of the world’s richest marble quarries. Designed using only premium hand picked stones, the beauty of this collection is is delivered through the technical achievements that showcase a high shade variation and exquisite surface.

Series Catalog

Click the image below to start downloading the catalog for this series
Mayfair HD Porcleain Tile Catalog Thumbnail Image

Variations

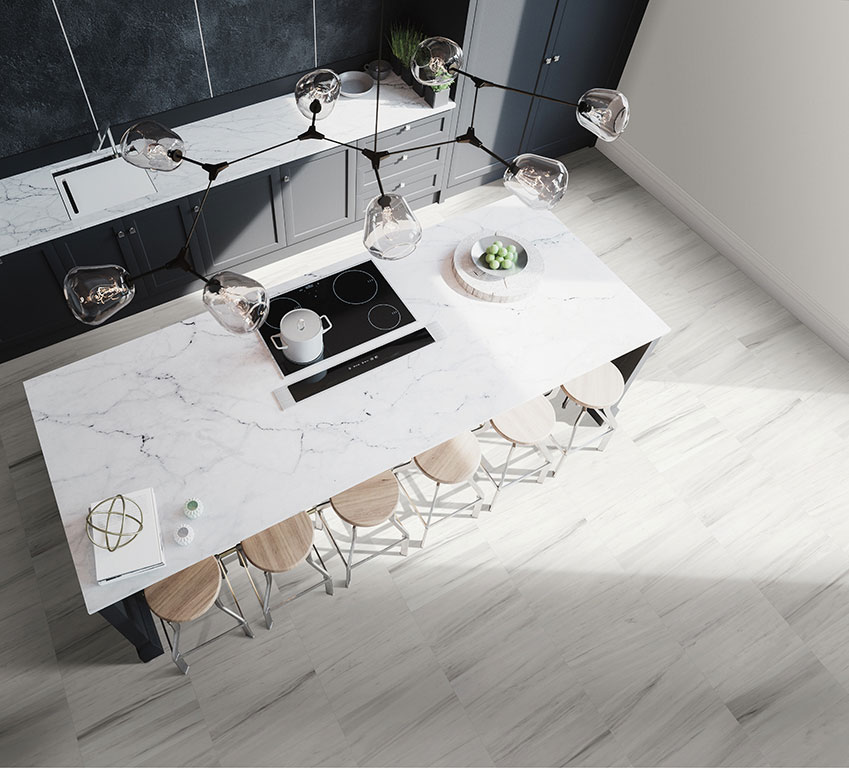

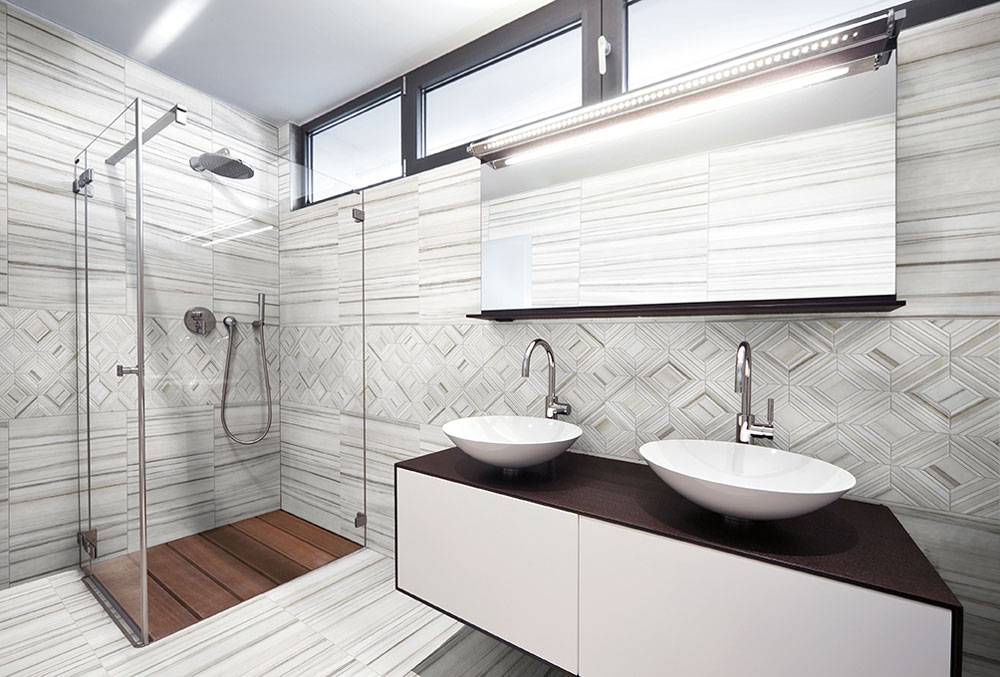

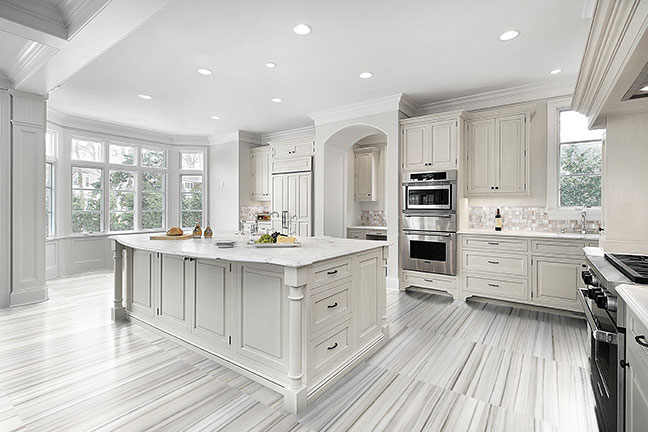

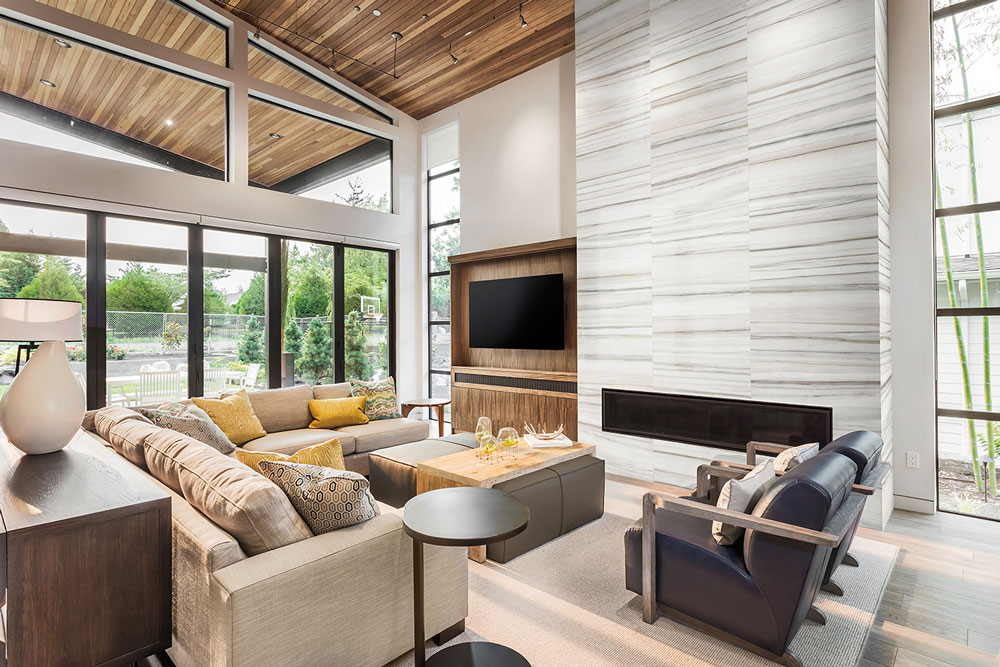

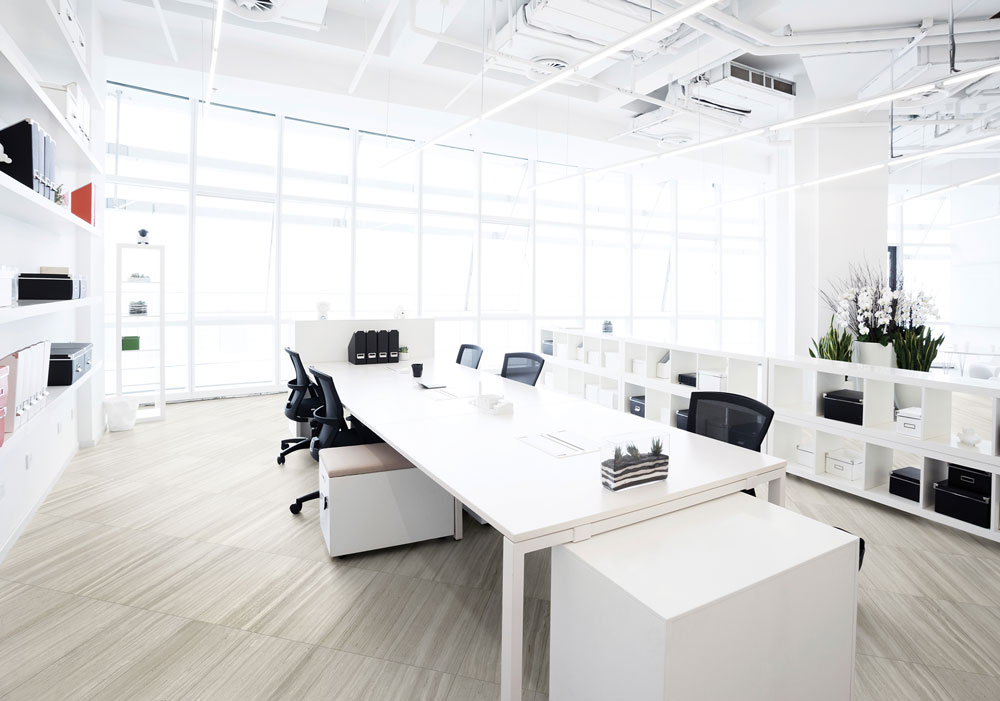

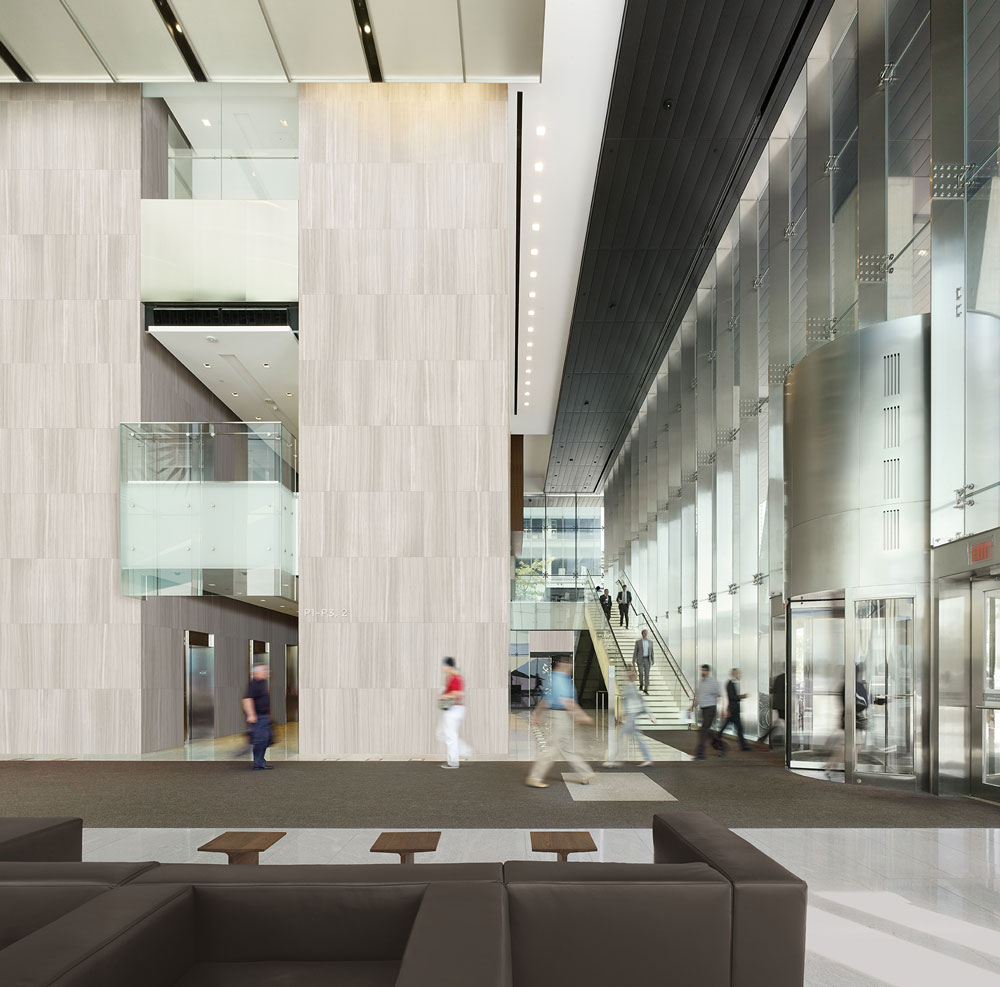

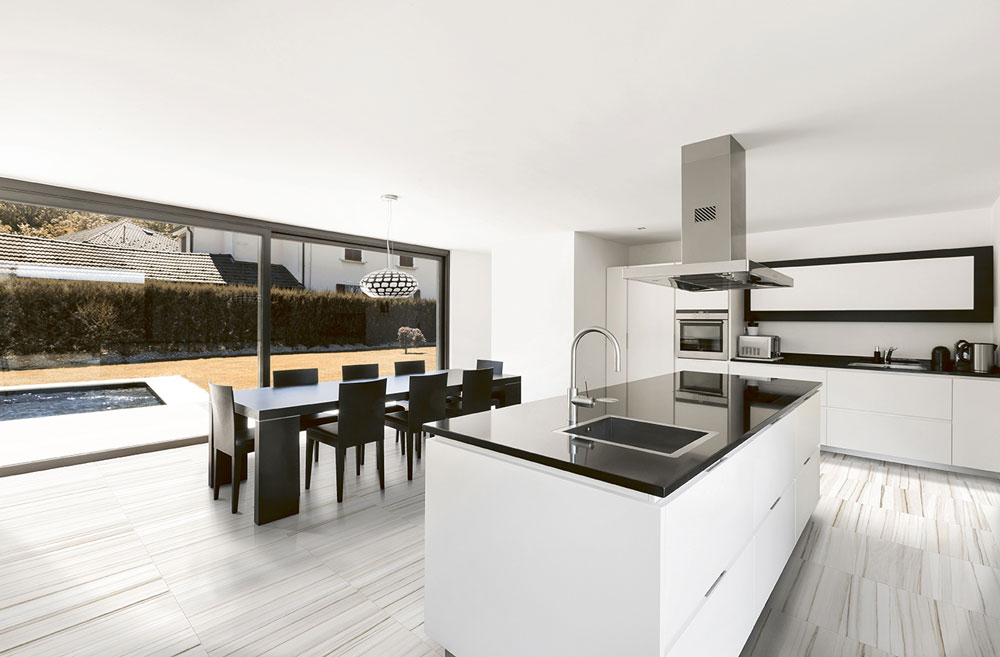

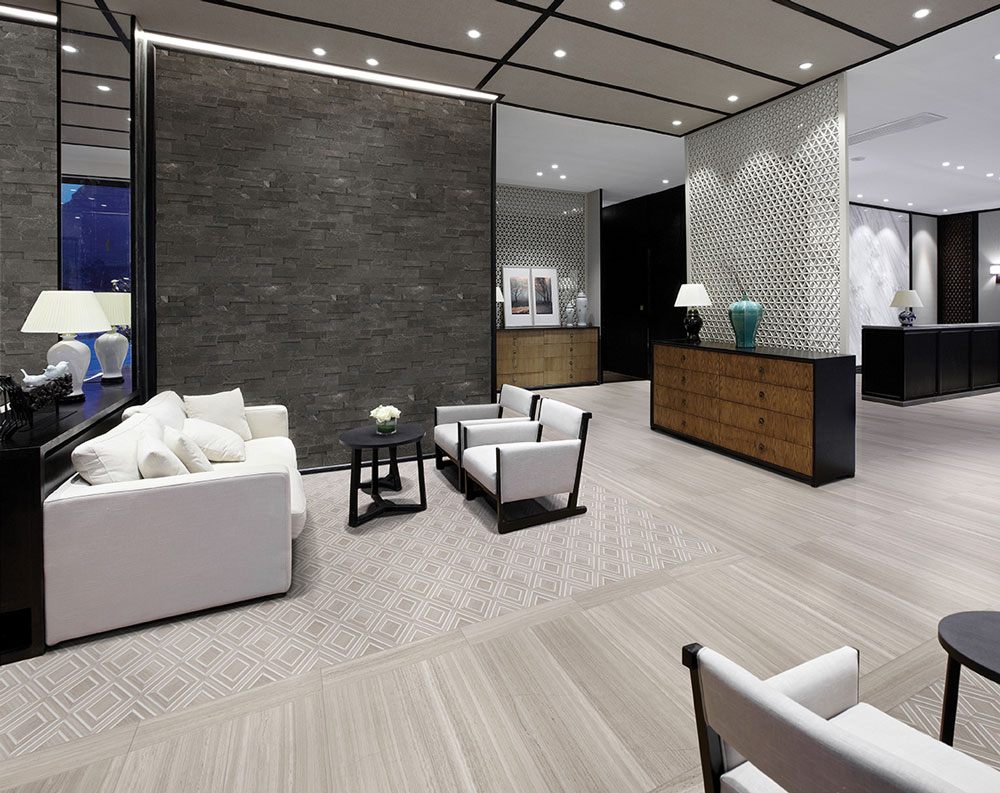

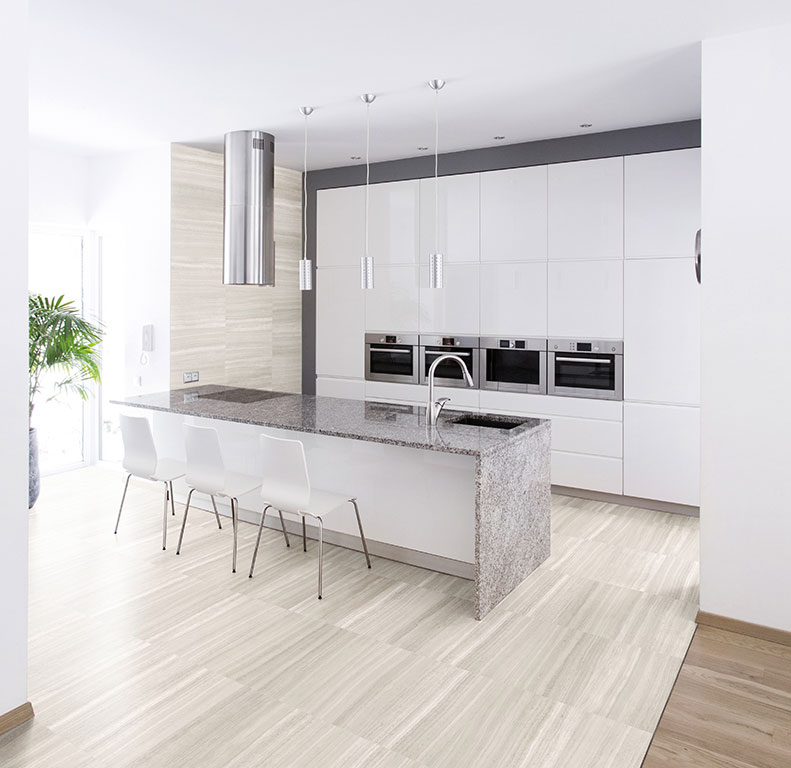

Installation Photos

sizes
mosaics
trims

General Specifications – Polished Tile

descriptionmethodunit4 x 1212 x 2416 x 3224 x 48
Actual Size mm – in100×300 mm – 3.94×11.8in300 x 600 mm – 11.8 x 23.6 in400 x 800 mm – 15.68 x 31.49 in600 x 1200 mm – 23.6 x 47.25 in
Thickness mm – in9.8 mm – 3/8 in9.8 mm – 3/8 in11.5 mm – 7/16 in12.5 mm – 1/2 in
Water AbsorptionASTM C373 / EN ISO 10545-3( % )≤ 0.5≤ 0.5≤ 0.5≤ 0.5
Abrasion ResistanceASTM C1027 / EN ISO 10545-7(PEI)4444
Scratch Hardness (Mohs)5555
Breaking StrengthEN ISO 10545-4(lbf)≥ 500≥ 500≥ 500≥ 500
Stain ResistanceEN ISO 10545-14 Class 5Class 5Class 5Class 5
Chemical ResistanceEN ISO 10545-13(GL)Class A – ResistantClass A – ResistantClass A – ResistantClass A – Resistant
Frost ResistanceEN ISO 10545-12 ResistantResistantResistantResistant
Static COF (Wet)ASTM C-1028(μ)≥ 0.40≥ 0.40≥ 0.40≥ 0.40
Static COF (Dry)ASTM C-1028(μ)≥ 0.60≥ 0.60≥ 0.60≥ 0.60
DCOF (WET)ANSI B101.3(μ)< 0.42< 0.42< 0.42< 0.42
Shade Variation  V2V2V2V2

General Specifications – Matte Tile

descriptionmethodunit12 x 2416 x 32
Actual Size mm – in300 x 600 mm – 11.8 x 23.6 in400 x 800 mm – 15.68 x 31.49 in
Thickness mm – in9.8 mm – 3/8 in11.5 mm – 7/16 in
Water AbsorptionASTM C373 / EN ISO 10545-3( % )≤ 0.5≤ 0.5
Abrasion ResistanceASTM C1027 / EN ISO 10545-7(PEI)44
Scratch Hardness (Mohs)66
Breaking StrengthEN ISO 10545-4(lbf)≥ 450≥ 450
Stain ResistanceEN ISO 10545-14(lbf)Class 5Class 5
Chemical ResistanceEN ISO 10545-13(GL)Class A – ResistantClass A – Resistant
Frost ResistanceEN ISO 10545-12 ResistantResistant
Static COF (Wet)ASTM C-1028(μ)≥ 0.50≥ 0.50
Static COF (Dry)ASTM C-1028(μ)≥ 0.70≥ 0.70
DCOF (WET)ANSI B101.3(μ)< 0.42< 0.42
Shade Variation  V2V2

General Specifications – Polished Mosaics

descriptionmethodunitPiazza1.25 x 1.25 Hex.2×2 Basketweave
Actual Size mm – in300 x 300 mm – 11.8 x 11.8 in295 x 305 mm – 11.6 x 12 in300 x 300 mm – 11.8 x 11.8 in
Thickness mm – in9.8 mm – 3/8 in9.8 mm – 3/8 in9.8 mm – 3/8 in
Water AbsorptionASTM C373 / EN ISO 10545-3( % )≤ 0.5≤ 0.5≤ 0.5
Abrasion ResistanceASTM C1027 / EN ISO 10545-7(PEI)/td> 444
Scratch Hardness (Mohs)555
Breaking StrengthEN ISO 10545-4(lbf)≥ 500≥ 500≥ 500
Stain ResistanceEN ISO 10545-14 Class 5Class 5Class 5
Chemical ResistanceEN ISO 10545-13(GL)Class A – ResistantClass A – ResistantClass A – Resistant
Frost ResistanceEN ISO 10545-12 ResistantResistantResistant
Static COF (Wet)ASTM C-1028(μ)≥ 0.40≥ 0.40≥ 0.40
Static COF (Dry)ASTM C-1028(μ)≥ 0.60≥ 0.60≥ 0.60
DCOF (WET)ANSI B101.3(μ)< 0.42< 0.42< 0.42
Shade Variation  V2V2V2

General Specifications – Matte Mosaics

descriptionmethodunit2 x 2 Basketweave
Actual Size mm – in300 x 300 mm – 11.8 x 11.8 in
Thickness mm – in9.8 mm – 3/8 in
Water AbsorptionASTM C373 / EN ISO 10545-3( % )≤ 0.5
Abrasion ResistanceASTM C1027 / EN ISO 10545-7(PEI)4
Scratch Hardness (Mohs)6
Breaking StrengthEN ISO 10545-4(lbf)≥ 450
Stain ResistanceEN ISO 10545-14(lbf)Class 5
Chemical ResistanceEN ISO 10545-13(GL)Class A – Resistant
Frost ResistanceEN ISO 10545-12 Resistant
Static COF (Wet)ASTM C-1028(μ)≥ 0.50
Static COF (Dry)ASTM C-1028(μ)≥ 0.70
DCOF (WET)ANSI B101.3(μ)< 0.42
Shade Variation  V2

Packaging Information

DescriptionItem Codelbs/pcpcs/boxlbs/boxsq ft/boxpcs/skidsq ft/skid
Mayfair* Strada Ash 4×12 Polished323-60-5061.453043.5910.001350450.00
Mayfair* Zebrino 4×12 Polished323-60-5071.463043.8910.001350450.00
Mayfair* Suave Bianco 4×12 Polished323-60-5081.453043.5910.001350450.00
Mayfair* Strada Ash 16×32 Polished323-65-51618.11472.4414.22152540.44
Mayfair* Zebrino 16×32 Polished323-65-51718.11472.4414.22152540.44
Mayfair* Suave Bianco 16×32 Polished323-65-51818.11472.4414.22152540.44
Mayfair* Strada Ash 16×32 Matte323-65-51918.11472.4414.22152540.44
Mayfair* Zebrino 16×32 Matte323-65-52018.11472.4414.22152540.44
Mayfair* Suave Bianco 16×32 Matte323-65-52118.11472.4414.22152540.44
Mayfair* Calacatta Oro 2×2 Basketweave Matte323-69-3574.201042.049.68450435.60
Mayfair* Statuario Venato 2×2 Basketweave Matte323-69-3584.201042.049.68450435.60
Mayfair* Volakas Grigio 2×2 Basketweave Matte323-69-3594.201042.049.68450435.60
Mayfair* Strada Ash 24×48 Polished323-69-91946.08215.5064512.00
Mayfair* Zebrino 24×48 Polished323-69-92046.08292.1615.5064512.00
Mayfair* Suave Bianco 24×48 Polished323-69-92146.08292.1615.5064512.00
Mayfair* Calacatta Oro 1.25×1.25 Hexagon Polished323-69-9223.871038.739.68450435.60
Mayfair* Statuario Venato 1.25×1.25 Hexagon Polished323-69-9233.871038.739.68450435.60
Mayfair* Volakas Grigio 1.25×1.25 Hexagon Polished323-69-9243.871038.739.68450435.60
Mayfair* Strada Ash 12×24 Polished323-69-9458.79870.2816.00224448.00
Mayfair* Zebrino 12×24 Polished323-69-9468.79870.2816.00224448.00
Mayfair* Suave Bianco 12×24 Polished323-69-9478.79870.2816.00224448.00
Mayfair* Strada Ash 3×12 Bullnose Polished323-69-9481.102022.005.001680420.00
Mayfair* Zebrino 3×12 Bullnose Polished323-69-9491.102022.005.001680420.00
Mayfair* Suave Bianco 3×12 Bullnose Polished323-69-9501.102022.005.001680420.00
Mayfair* Strada Ash 2×2 Basketweave Polished323-69-9514.161041.5710.00450450.00
Mayfair* Zebrino 2×2 Basketweave Polished323-69-9524.161041.5710.00450450.00
Mayfair* Suave Bianco 2×2 Basketweave Polished323-69-9534.161041.5710.00450450.00
Mayfair* Strada Ash 12×24 Matte323-69-9548.96871.6816.00224448.00
Mayfair* Zebrino 12×24 Matte323-69-9558.96871.6816.00224448.00
Mayfair* Suave Bianco 12×24 Matte323-69-9568.96871.6816.00224448.00
Mayfair* Strada Ash 3×12 Bullnose Matte323-69-9571.102022.005.001680420.00
Mayfair* Zebrino 3×12 Bullnose Matte323-69-9581.102022.005.001680420.00
Mayfair* Suave Bianco 3×12 Bullnose Matte323-69-9591.102022.005.001680420.00
Mayfair* Strada Ash 2×2 Basketweave Matte323-69-9604.201042.0410.00450450.00
Mayfair* Zebrino 2×2 Basketweave Matte323-69-9614.201042.0410.00450450.00
Mayfair* Suave Bianco 2×2 Basketweave Matte323-69-9624.201042.0410.00450450.00
Mayfair* Strada Ash 1.25×1.25 Hexagon Polished323-69-9633.871038.7310.00450450.00
Mayfair* Zebrino 1.25×1.25 Hexagon Polished323-69-9643.871038.7310.00450450.00
Mayfair* Suave Bianco 1.25×1.25 Hexagon Polished323-69-9653.871038.7310.00450450.00
Mayfair* Strada Ash Piazza Mosaic323-69-9724.121041.159.68450435.60
Mayfair* Strada Ash Piazza Mosaic323-69-9734.121041.159.68450435.60
Mayfair* Suave Bianco Piazza Mosaic323-69-9744.121041.159.68450435.60
Mayfair* Strada Ash 3×24 Bullnose Polished323-69-9752.201533.007.50840420.00
Mayfair* Zebrino 3×24 Bullnose Polished323-69-9762.201533.007.50840420.00
Mayfair* Suave Bianco 3×24 Bullnose Polished323-69-9772.201533.007.50840420.00
Mayfair* Strada Ash 3×24 Bullnose Matte323-69-9782.201533.007.50840420.00
Mayfair* Zebrino 3×24 Bullnose Matte323-69-9792.201533.007.50840420.00
Mayfair* Suave Bianco 3×24 Bullnose Matte323-69-9802.201533.007.50840420.00
