Castletown
Inspired by Portland Stone, Castletown is elegant and bright and brings contemporary sophistication to any space.
24×48 Porcelain Tile
24×24 Porcelain Tile
12×24 Porcelain Tile
2×2 Porcelain Mosaic Tile
2in Hexagon Porcelain Mosaic Tile
Variations

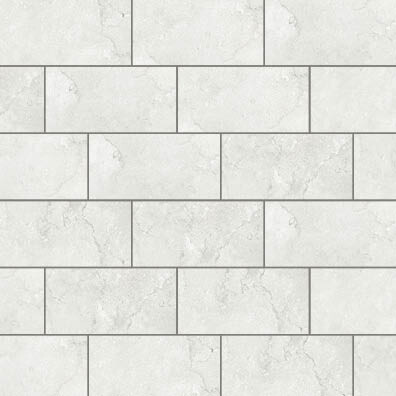

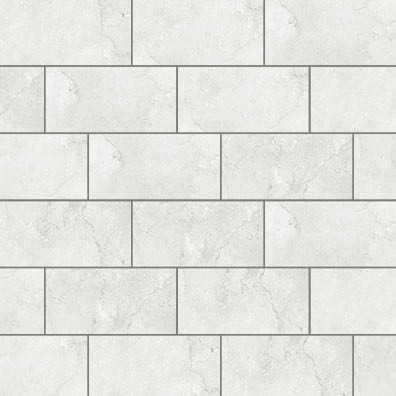

Castletown Linen

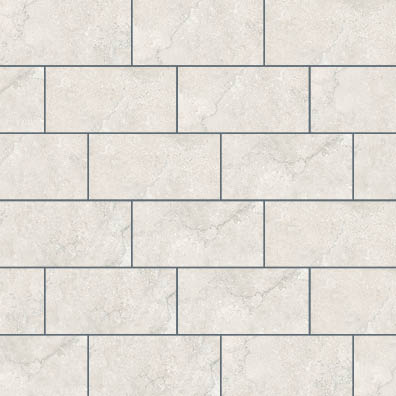

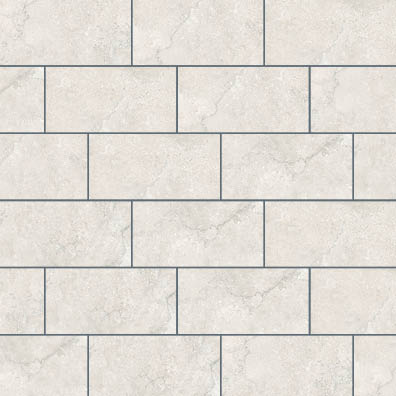

Castletown Silk

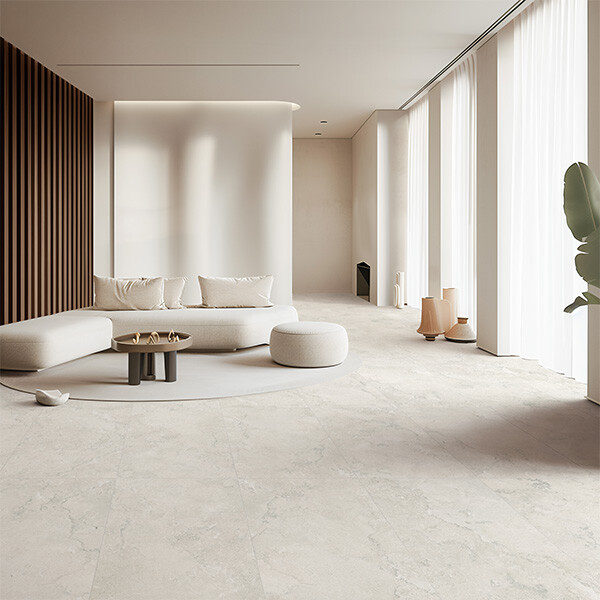

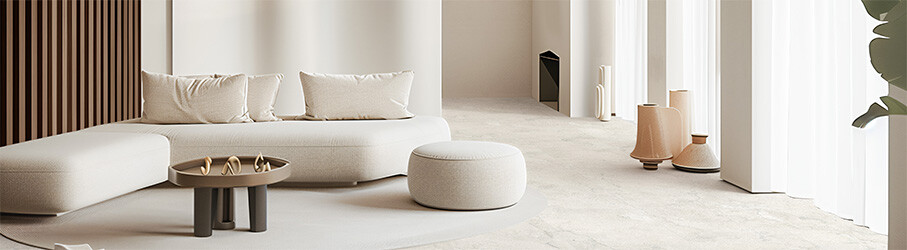

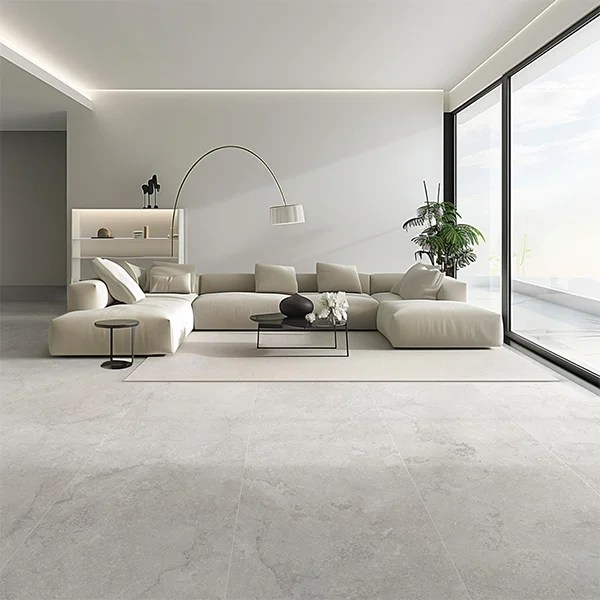

Installation Photos

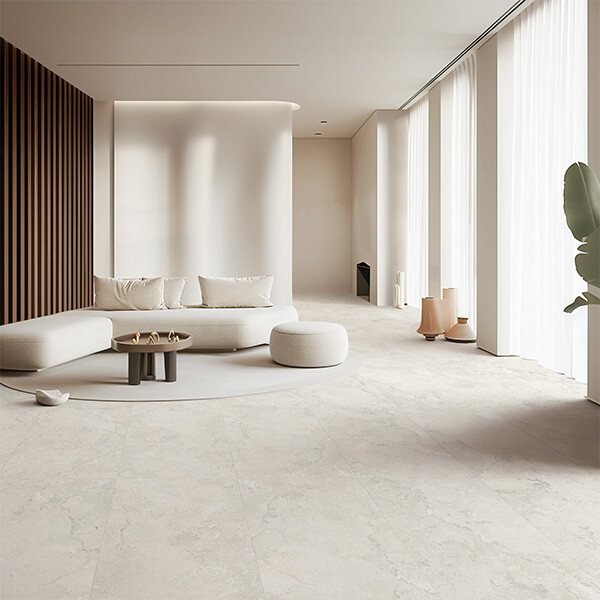

Castletown Silk
|
|
|
|
General Specifications
| Description | Method | Unit | 12 x 24 | 24 x 24 | 24 x 48 | 2 x 2 Mosaic | 2in Hex Mosaic |
|---|---|---|---|---|---|---|---|
| Actual Size | ISO 10545-2 | mm – in | 297 x 600 mm – 11.7 x 23.6 in | 600 x 600 mm – 23.6 x 23.6 in | 600 x 1200 mm – 23.6 x 47.2 in | 300 x 300 mm – 11.8 x 11.8 in | 324 x 332 mm – 12.8 x 13.1 in |
| Thickness | ISO 10545-2 | mm – in | 8.8 mm – 0.346 in | 8.8 mm – 0.346 in | 9.6 mm – 0.378 in | 8.8 mm – 0.346 in | 8.8 mm – 0.346 in |
| Water Absorption | ISO 10545-3 | ( % ) | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 |
| Abrasion Resistance | ISO 10545-7 | (PEI) | Class 4 | Class 4 | Class 4 | Class 4 | Class 4 |
| Scratch Hardness | EN 15771 | (Mohs) | ＞6 | ＞6 | ＞6 | ＞6 | ＞6 |
| Breaking Strength | ISO 10545-4 | (N) | ≥ 1300 | ≥ 1300 | ≥ 1300 | ≥ 1300 | ≥ 1300 |
| Chemical Resistance | ISO 10545-13 | (GL) | Class GLA | Class GLA | Class GLA | Class GLA | Class GLA |
| Frost Resistance | ISO 10545-12 | Fully Resistant | Fully Resistant | Fully Resistant | Fully Resistant | Fully Resistant | |
| DCOF | ANSI A137.1 | (μ) | ≤ 0.61 | ≤ 0.61 | ≤ 0.61 | ≤ 0.61 | ≤ 0.61 |
